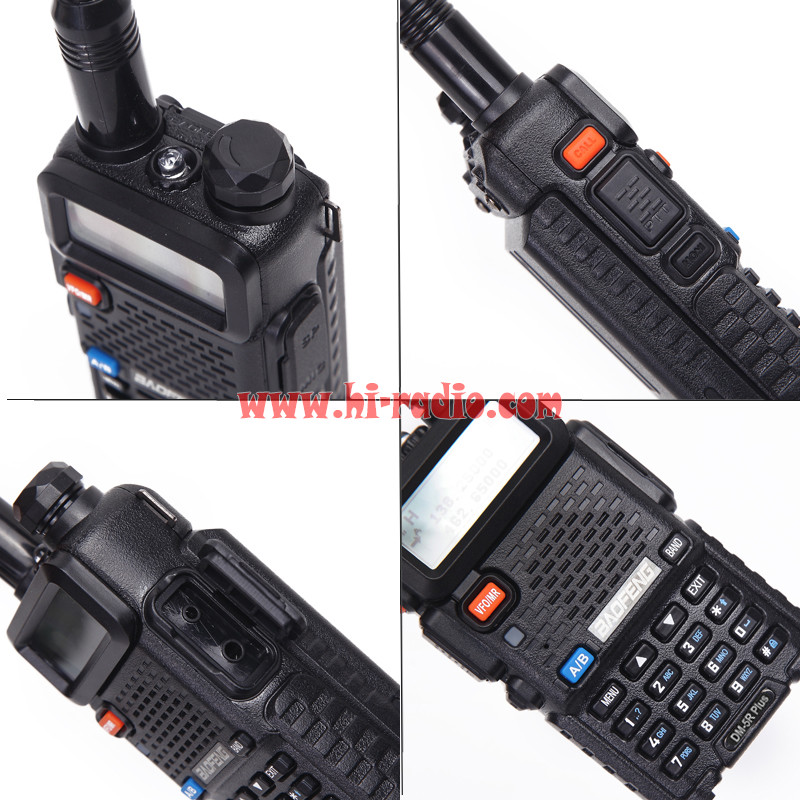

NEW Baofeng DM-5R plus 2nd Generation VHF/UHF Dual Band DMR Tier I&II Digital Radio

$98.00 $78.00

SKU: 10180157 Category:

Description

Baofeng DM-5R plus Tier I Tier II  Digital Walkie Talkie DMR Two-way radio VHF/UHF Dual Band radio Repeater UPGRADED OF DM 5R plus

NEW Baofeng DM-5R plus 2nd Generation DMR Digital Radio VHF/UHF Dual Band DMR Tier I&II FM Walkie Talkie Analogue & DMR Mode Transceiver with Free Earpiece (Compatible with MotoTRBO radios & repeater)



Features:

  1. Baofeng DM-5R plus 2018 March New Product, 2nd Generation DMR  Digital Radio
  2. 64gourps,1024CH
  3. Analogue & Digital Mode
  4. Dual Band VHF 136-174MHz & UHF 400-480MHz
  5. Dual Time Slot, Tier I &II
  6. Compatible with MOTOTRBO Radio and its repeater perfectly
  7. Dual Display
  8. VOX Function
  9. Frequency Step:2.5/5/6.25/10/12.5/20/25/k
  10. FM Receiver
  11. Flashlight
  12. 2000mAh 7.4V 14.8Wh High Capacity Li-ion battery Pack

Specifications:

General
Frequency Range Dual Band

VHF 136-174MHz &UHF 400-480MHz

Storage channel  64 groups ,1024
Stepped Frequency 2.5/5/6.25/10/12.5/20/25KHz
Operating Voltage DC 7.4V
Frequency Stability ±1.5ppm
Operating Temperature -20°c ~ 50°c
Operating Mode Same-frequency simple or different-frequency simplex
Antenna Impedance 50Ω
Battery Capacity 2000mAh
Dimensions 150 ×60 ×30mm(Antenna Not included)
Transmitting
Output Power 1W/5W
Modulation (wide band/ Narrow band) Analog: 16K F3E/11K F3E

Digital:Tier i&ii

Maximum frequency Deviation (wide band/ Narrow band) ≤5KHz /≤2.5KHz
FSK allowable error rate ≤3%
Spurious power ≤7.5 W
Adjacent channel power ≤-65dB ≤-60dB
Signal to noise radio -45dB -40dB
CTCSS/DCS  Frequency Deviation 0.7 ±0.1KHz/0.4± 0.1KHz
Modulation  sensitivity 8-12mV
Transmitting Current ≤1.5A
Receiving
Analog sensitivity -122dBm (12dB SINAD)
Digital sensitivity -120dBm (BER ≤5%)
Audio Power 1W
Audio Distortion <10%
Intermoulation ≥62dB / ≥ 58dB
Adjacent channel selectivity (Wideband/narrow band) ≥65dB /≥60dB
Receiving current ≤380mA

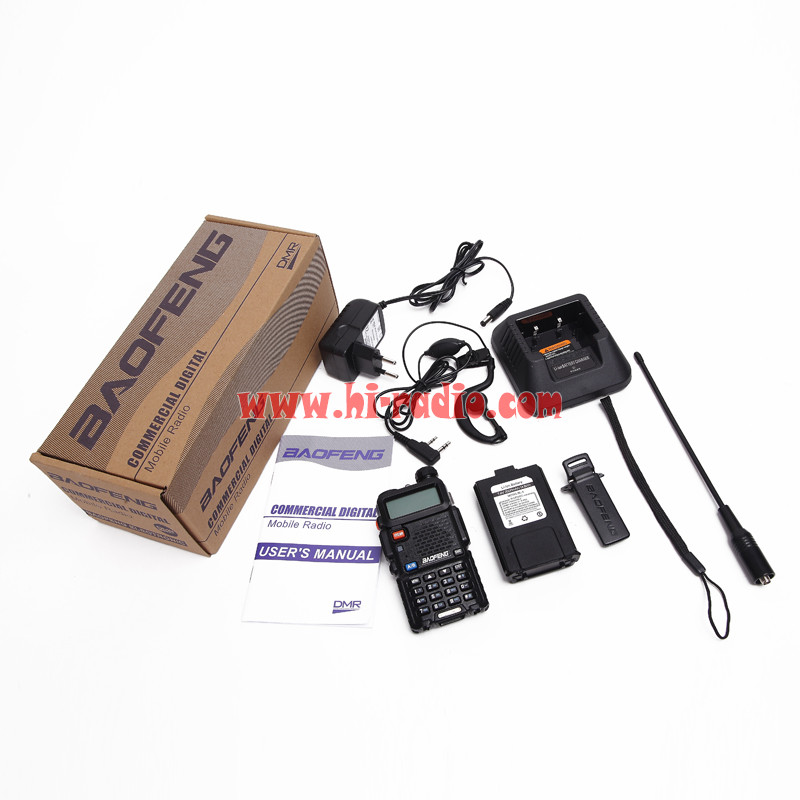

Package Contain:

1× BAOFENG DM-5R plus DMR Dual band Digital Radio

1× 2000mAh Li-ion Battery Pack

1× Charger Unit with AC Adapter

1× Antenna

1× Hand Strap

1× Belt Clip

1× Earpiece

1× User Manual

here are difference in new version and old version.and some old version like dm-5r and dm-5r plus is just tier1 (tier I) function.pls attetion!!!



Additional information

Weight 1 kg
Dimensions 300 × 200 × 120 mm
