Inrico DR10 Gateway new product LMR & PoC connectivity for Analog radios with 8GB rom support dual Micro-SIM card

Sale!

Inrico DR10 Gateway new product LMR & PoC connectivity for Analog radios with 8GB rom support dual Micro-SIM card

$1,880.00 $1,268.00

Out of stock

SKU: 10180817 Categories: ,

Description

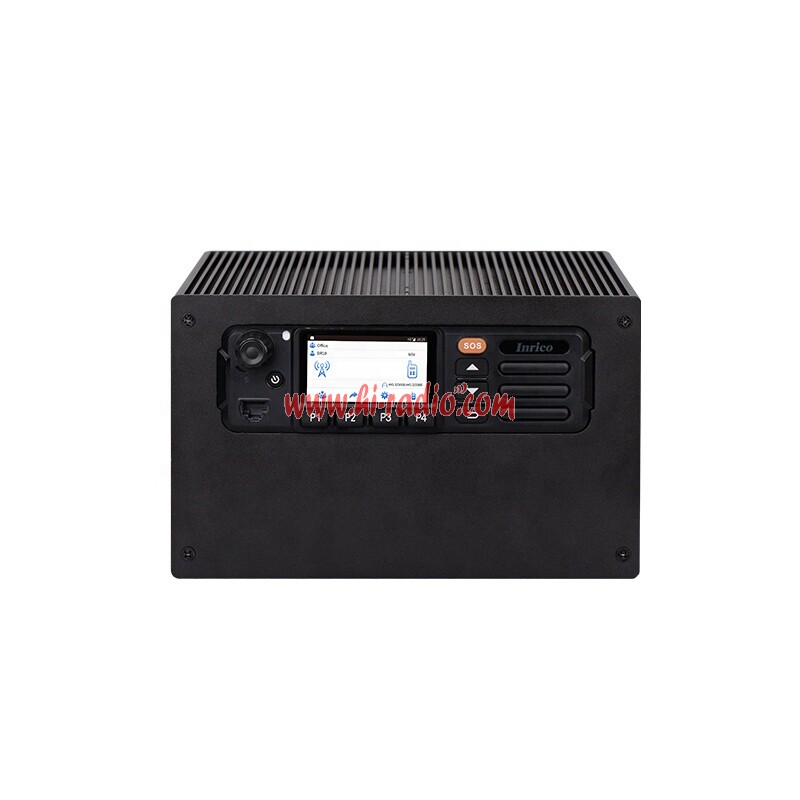

Inrico DR10 Gateway new product LMR & PoC connectivity for DMR radios support dual Micro-SIM card and GPS

LMR & PoC Connectivity

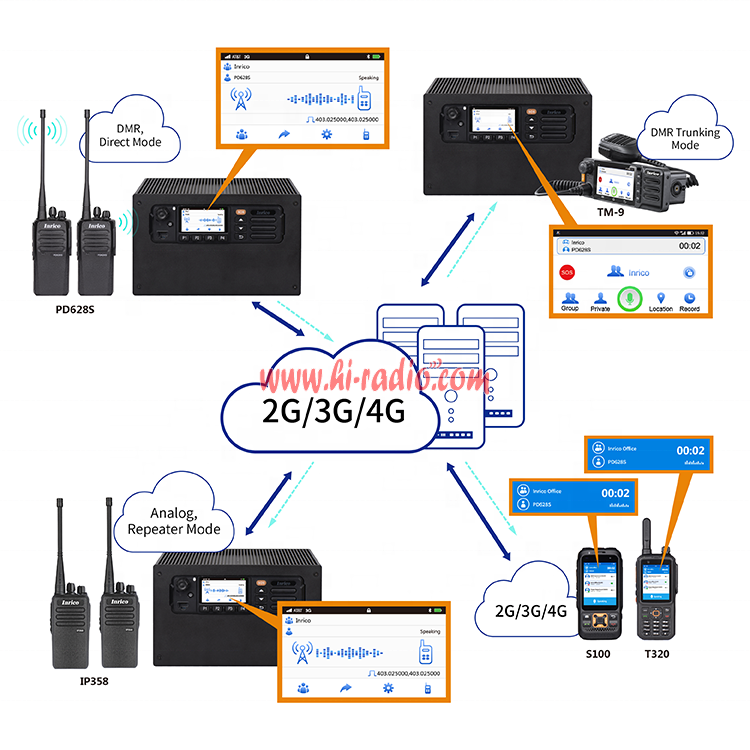

Inrico DR10 gateway, designed in industrial grade to survive in all scenarios, enables seamless connectivity
between traditional Push-to-Talk (PTT) and Push-to-talk over Cellular (PoC) with its own signaling.
Viewing the Device ID
For users from transportation, security, hospitality, manufacturing, municipality, etc., DR10 not only facilitates the expansion of a hybrid communication system, but also protects previous investment. Caller ID display feature between PoC & DMR devices makes it easy for professionals on the move to know whom they are talking to within a group.
Transfer the Voice Message by Signalling Protocol
Inrico DR10, adopts signalling protocol to transfer the voice message.
Currently most of the gateway product from the existing market transfer the voice messages by collecting the voice.

Technical Specifications

Frequency
Model
DR10
EU version
GSM: B2,B3,B5,B8
WCDMA: B1,B2,B5,B8
FDD-LTE: B1,B3,B5,B7,B8,B20
TDD: B38/B40/B41
US version
GSM: B2,B5,
WCDMA: B1,B2,B4,B5
FDD-LTE: B1,B2,B4,B5,B7,B12,B13,B17,B28A,B28B,
Wi-Fi
WIFI 2.4G&5G Dual Band
Locations
GPS,AGPS
Software
OS
Android7.0
Hardware
CPU
MT6737
Memory
1GB(RAM)+8GB(ROM)
SIM card slot
Dual Micro-SIM card
USB Ports
USB 2.0
Display
2.45 inch,IPS, G + F Single Touch screen
LMR Specifications
Frequency
VHF(136-174MHz)/ UHF(403-470MHz)
Output Power
VHF:1-25W;UHF:1-25W
Channel spacing
12.5khz,20khz,25khz
Physical
Dimension ( H x W x D )
234 x 144 x 235mm
Weight
≈4.85KG
Working Temperature
-20°C ~ 80°C
Storage Temperature
-20°C ~ 60°C

Additional information

Weight 5 kg
Dimensions 500 × 500 × 100 mm
