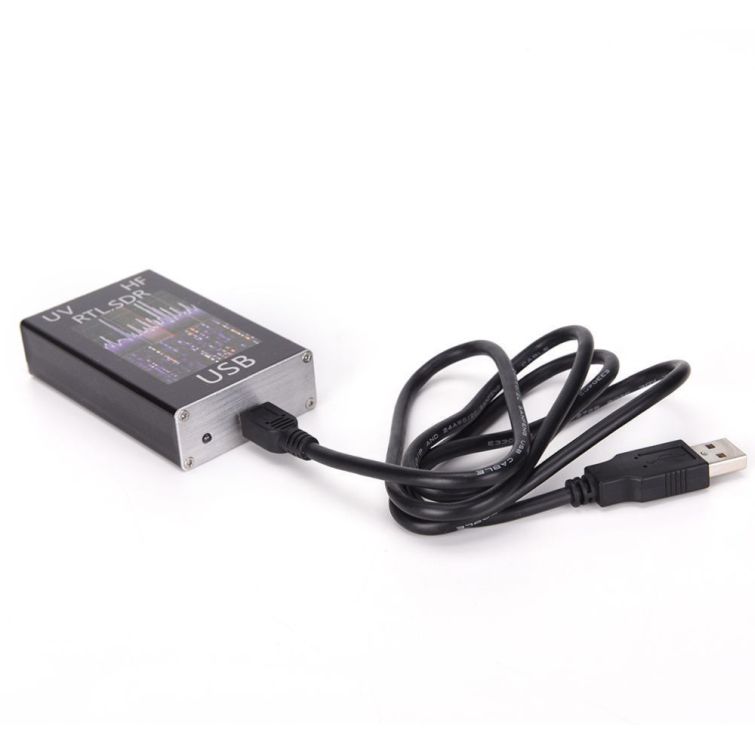

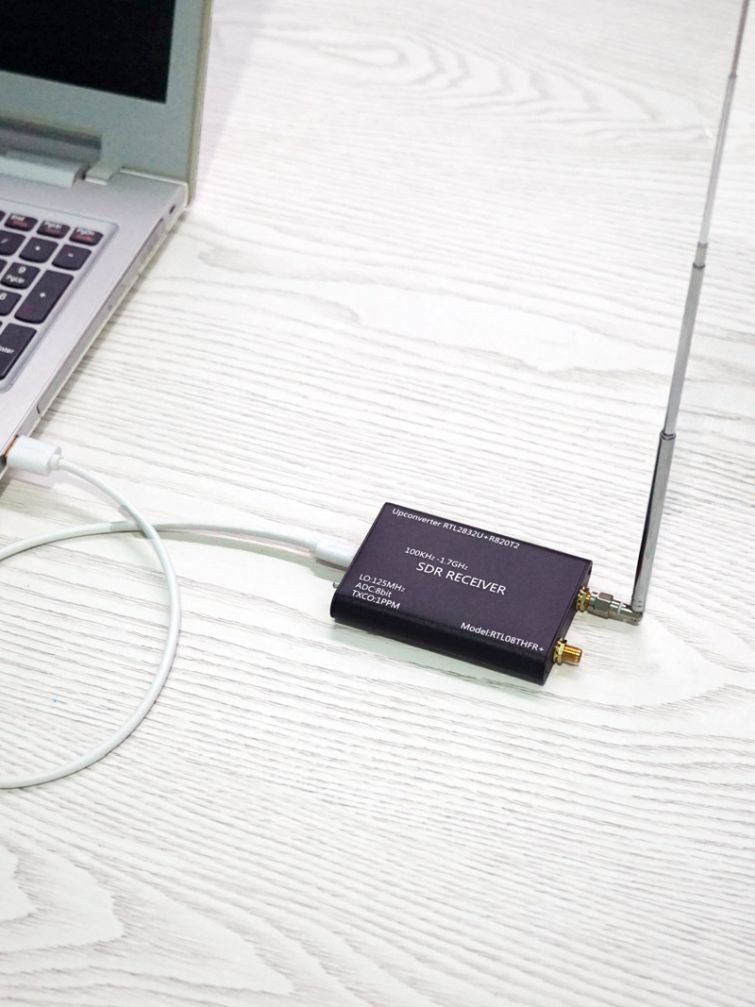

Ham Radio Receiver 100KHz-1.7GHz full Band UV RTL-SDR USB Tuner Receiver USB dongle with RTL2832u R820t2 Ham Radio RTL SDR
This item is 100KHz-1.7GHz full band UV HF RTL-SDR USB Tuner Receiver
You can use the SDR software receives electromagnetic waves 100KHz-1.7GHz,support AM,FM(NFM,WFM),CW,DSB,LSB,USB demodulation.
Listen to HF SSB communication,FM radio,walkie-talkie call,aviation bands and the like.
There are supporting a U/V antenna,1pc 3 meter cable,1pc USB cable.
Description:
The receiver take RTL2832U + R820T programs,taking advantage of the Q channel RTL2832U on adding support for frequencies of 100KHz-24MHz,realized the reception 100KHz-1.7GHz .
Features:
http://v.youku.com/v_show/id_XNjI2OTc5MDQw.html
Data Download:
http://rtlsdr.org/softwarewindows
http://v.youku.com/v_show/id_XNjgwODY3OTYw.html
http://www.radioamatoripeligni.it/i6ibe/rtl2832hf/dongle.htm
http://www.qsl.net/py4zbz/hfrtl.htm
Colour: Black
Material: plastic + metal
it is widely used it is also easy to use and has a long service life.
Fully assembled and ready for use. Uses RTL2832U + R820T2 chipset. The R820T2 tuner has a slightly better sensitivity than the R820T and works better even at frequencies around 1.5 GHz. 100% compatible with the older R820T software.
Features:
Listen to unencrypted Ambulance/Fire/EMS conversations, decoding unencrypted digital voice transmissions.
Listen aircraft traffic control conversations, watching analogue broadcast TV.
Track aircraft positions like a radar with ADS-B decoding, tracking maritime boat positions like a radar with AIS decoding.
Decode aircraft ACARS short messages and POCSAG/FLEX pager traffic, scanning trunking radio conversations, cordless phones and baby monitors.
Use rtl-sdr as a spectrum analyzer, receiving NOAA weather satellite images.
Receive wireless temperature sensors and wireless power meter sensors.
Decode digital amateur radio ham communications such as CW/PSK/RTTY/SSTV.
Specification:
Use RTL2832U + R820T2 chipset
100KHz to 1766MHz operating frequency
Cover all short wave amateur bands
Cover VHF & UHF bands from 24-1766MHz.
Up to 3.2M sampling rate. (~ 2.8 MHz stable)
Reception modes AM, NFM, FM, DSB, USB, LSB and CW
RF Shortwave Q-Branch Direct Sampling
Material:Aluminum housing
Quantity:1 Set

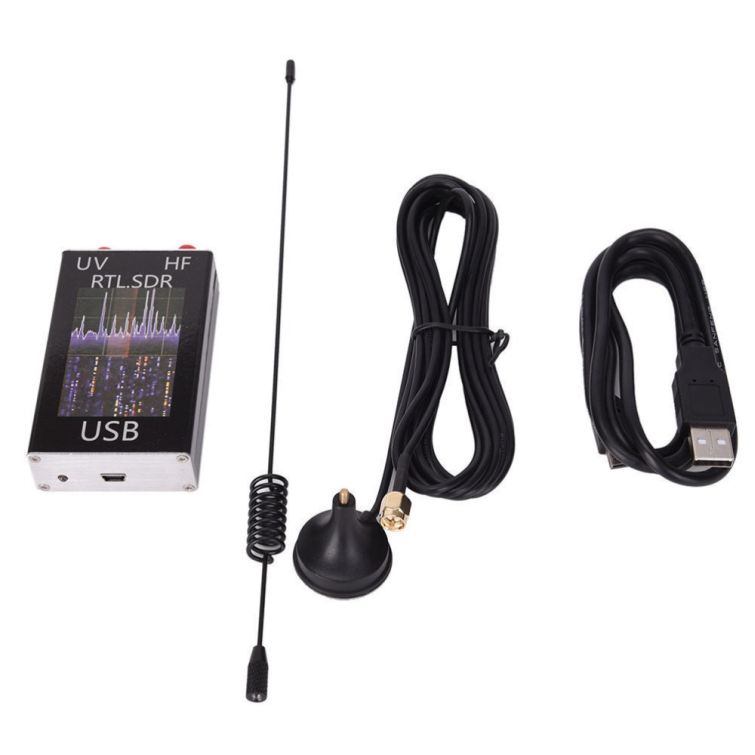

Package List:
1 * 100Khz-1.7GHz Full Band UV HF RTL.SDR+USB Tuner Receiver R820T+8232 Radio
1 * USB Cable
1 * Testing Telescopic Antenna
