High-quality GP380 Motorola Portable Walkie Talkie VHF UHF with Full keypad display Screen Handheld TWO WAY Radio
Description:
- Frequency Range: VHF 134-174MHz or UHF 403-470MHz.
- Output power: 4W/5W
- Channel: 255
- Channel step: 12.5/20/25KHz
- VOX function
- CTCSS/ DCS
- Emergency call
- Time-Out Timer(TOT)
- Battery Save
- MIL-STD 810D/E/F
- Signaling-Quick Call II, DTMF, part of the MDC1200
- LED display
- P.C programming
Product Information

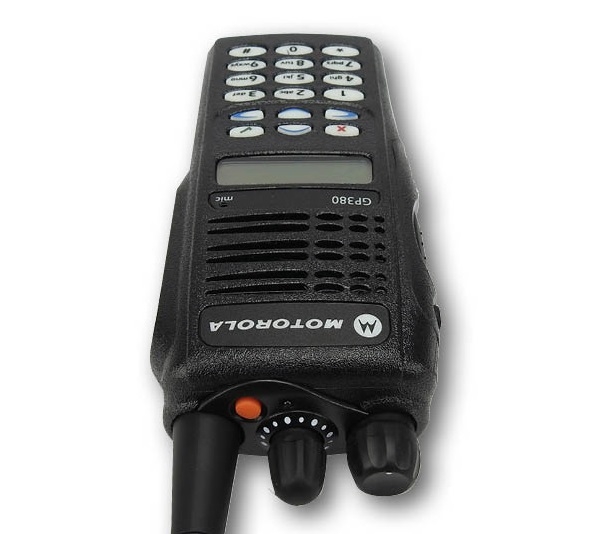

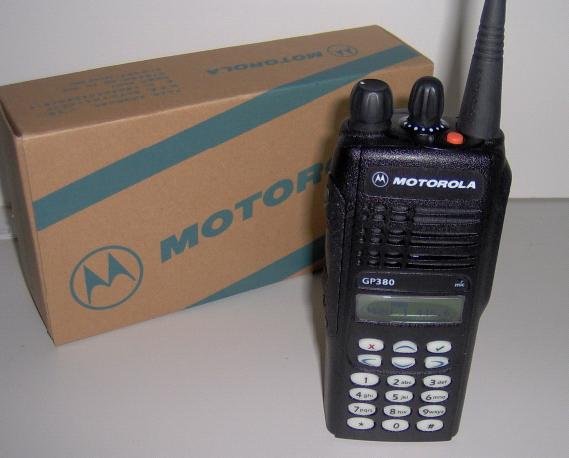

Motorola GP380 is a classic walkie talkie that adopts high-quality technology and design concepts, providing users with a fast, reliable, and convenient communication method.
The Motorola GP380 walkie talkie adopts high-quality materials and advanced technology, which can maintain stable signals and clear sound quality in different environments. This makes it widely used in fields such as security, logistics, public security, and construction sites.
The Motorola GP380 walkie talkie has a clear display screen that can easily display information such as volume, channel, battery level, and signal strength. Users can quickly adjust and manage it according to their needs. This enables it to provide reliable and effective communication services in emergency and hazardous environments.
The Motorola GP380 walkie talkie has been widely used in various industries due to its high quality, high-quality voice, portability, and display screen. No matter which field you work in or where you need communication services, the Motorola GP380 walkie talkie will be your first choice.
Function
Signalling
- Private Line
- 5-tone selective signalling
Adaptable and versatile
- Option board expandability
- Easily programmed in the fi eld to support additional features
Easy to use and set-up
- Programmable buttons for easy access to frequently used features
- Ruggedised design and compelling user interface
- Simple menus and alpha-numeric phonebook
- Full keypad allows easy telephone interconnect
Protecting users
- Emergency signalling
- Lone worker feature for staff working remotely
- Whisper mode for discreet communications
- Caller identifi cation
Quality
- MIL Spec 810 compliant
- Meets IP54 environmental standards
- Passed Motorola Accelerated Life Test
- X-Pand voice compression technologyEffi ciency
- Channel scanning
- Call management features include call forwarding, escalating incoming call alert and missed calls list
Accessories
- Battery
- Antenna
- Charger
- Power adapter
- Clip
- Manual
Specifications
| General | ||
| Channel Capacity | 255 | |
| Power Supply | Rechargeable battery – 7.5V | |
| Dimensions H x W x D (mm) with: High capacity NiMH battery Ultra high capacity NiMH battery NiCD battery Li-Ion battery |
Height excluding knobs 137 x 57.5 x 37.5 137 x 57.5 x 40.0 137 x 57.5 x 40.0 137 x 57.5 x 33.0 |
|
| Weight (gm) with: Standard high capacity NiMH battery Ultra high capacity NiMH battery NiCD battery Li-Ion battery |
420 500 450 350 |
|
| Average battery life @ 5/5/90 Cycle with: High capacity NiMH battery Ultra high capacity NiMH battery NiCD battery Li-Ion battery |
LOW POWER 11 hours 14 hours 12 hours 11 hours |
HIGH POWER 8 hours 11hours 9 hours 8 hours |
| Sealing | Withstands rain testing per MIL STD 810 and IP54 | |
| Shock and Vibration | Protection provided via impact resistant housing exceeding MIL STD 810 and TIA/EIA 603 |
|
| Dust and Humidity | Protection provided via environment resistant housing exceeding MIL STD 810 and TIA/EIA603 |
|
| Operating temperature | -30oC to +60oC | |
| Storage temperature | -40oC to +85oC | |
| Transmitter | ||
| Frequencies – Full Bandsplit | LB1: 29.7-42 MHz LB2: 35-50 MHz VHF: 136-174 MHz UHF: 403-470 MHz |
|
| Channel Spacing | 12.5 / 20 / 25 kHz | |
| Frequency Stability (-30oC to 60oC, +25oC Ref.) | 1.5 kHz @ 12.5 kHz 2.0 kHz @ 20/25 kHz |
|
| Power | 29.7-42: 1-6W 35-50: 1-6W 136-174: 1-5W 403-470: 1-4W |
|
| Modulation Limiting | ±2.5 @ 12.5 kHz ±4.0 @ 20 kHz ±5.0 @ 25 kHz |
|
| Conducted/Radiated Emission | -36 dBm <1 GHz -30 dBm ≥ 1…4 GHz |
|
| Adjacent Channel Power | -60 dB @ 12.5 kHz -70 dB @ 20/25 kHz |
|
| Receiver | ||
| Frequencies – Full Bandsplit | LB1: 29.7-42 MHz LB2: 35-50 MHz VHF: 136-174 MHz UHF: 403-470 MHz |
|
| Channel Spacing | 12.5 / 20 / 25 kHz | |
| Sensitivity (20dB SINAD) | 0.50 ÎĽV typical / 12.5 kHz | |
| Intermodulation | 65 dB | |
| Adjacent Channel Selectivity | 60 dB @ 12.5 kHz 70 dB @ 20/25 kHz |
|
| Spurious Rejection | 70 dB | |
| Conducted Spurious Emission | -57 dBm <1 GHz -47 dBm ≥ 1…4 GHz |
|
