Sale!
, ,

Quansheng K6 UHF VHF Multi bands Portable Am Fm Transceivers UV-K58

Original price was: $66.00.Current price is: $47.00.

& Free Shipping

Quansheng UV K5 (8) Walkie Talkie UV-K6 Portable Am Fm Two Way Radio Commutator Station Amateur Ham Wireless Set Long Range Receiver



-VHF UHF Dual BAND STANDBY, 50-600MHz full band Receiving

-Frequency meter Function

-Cross-band Communication

-FM radio/Air Band Receiving

-VOX (Voice operated Transmission)

-10 Channels America NOAA weather forecast

-Built-in high light Torch
-200 Memory Channels

-Time-Out-Timer

-H (High), M (Medium), L (Low) Output Power Selective

-Dual Display Of Frequency And Channel

-Wireless Frequency copy from other radios

-Wireless Radio Replication

-Repeater Forwarding Confirmation Function

-DTMF AND 1750 Call Tone

-Busy Channel Lock

-Squelch Level Adjustable

-Keypad Lock

-PC Programmable

-Frequency And Channel Mode Shift

-Manual Emergency Alert

-10-Group Scrambler

-Backlight Auto Off Time Selective
-Frequency/DCS/CTCSS Scan

-Digital Signal CTCC/DCS

-1600 mAh Rechargeable Li-ion Battery Pack

-TPYE C and Desktop Charging

Frequency Range:

F1:50-76MHz(RX only)

F2:108-135.9750MHz(RX only)

F3:136-174MHz(TX and RX both)

F4:174-350MHz(RX only)

F5:350-399.9750MHz(RX only)

F6: 400-470MHz (TX and RX both)

F7:470-600MHz(RX only)

FM Radio: 76-108MHz

Technical Parameters:

Number of channels: 200

Number of FM radios: 16

Frequency stability:±1ppm

Size :115mmX60mmX37.5mm

Weight: 234g

Working temperature: -20℃+60℃

Antenna impedance: 50Ω

Modulation mode: FM: 11KOF3E(12.5KHz), 16K0F3E(25KHz)

Number of NOAA channels: 10

Battery capacity: 1600mAh

Audio Power:≥0.5W

Audio Distortion: ≤10%

Transmitting Power:≤5

Emission Current :≤1.5A

Maximum Frequency Deviation :≤5KHz(25KHz),≤2.5KHz(12.5KHz)

Modulation Distortion: ≤5%

Stray Power:≤7.5uW

Adjacent Channel Power: 70dB(25KHz), 60dB(12.5KHz)

Residual Modulation: 40dB

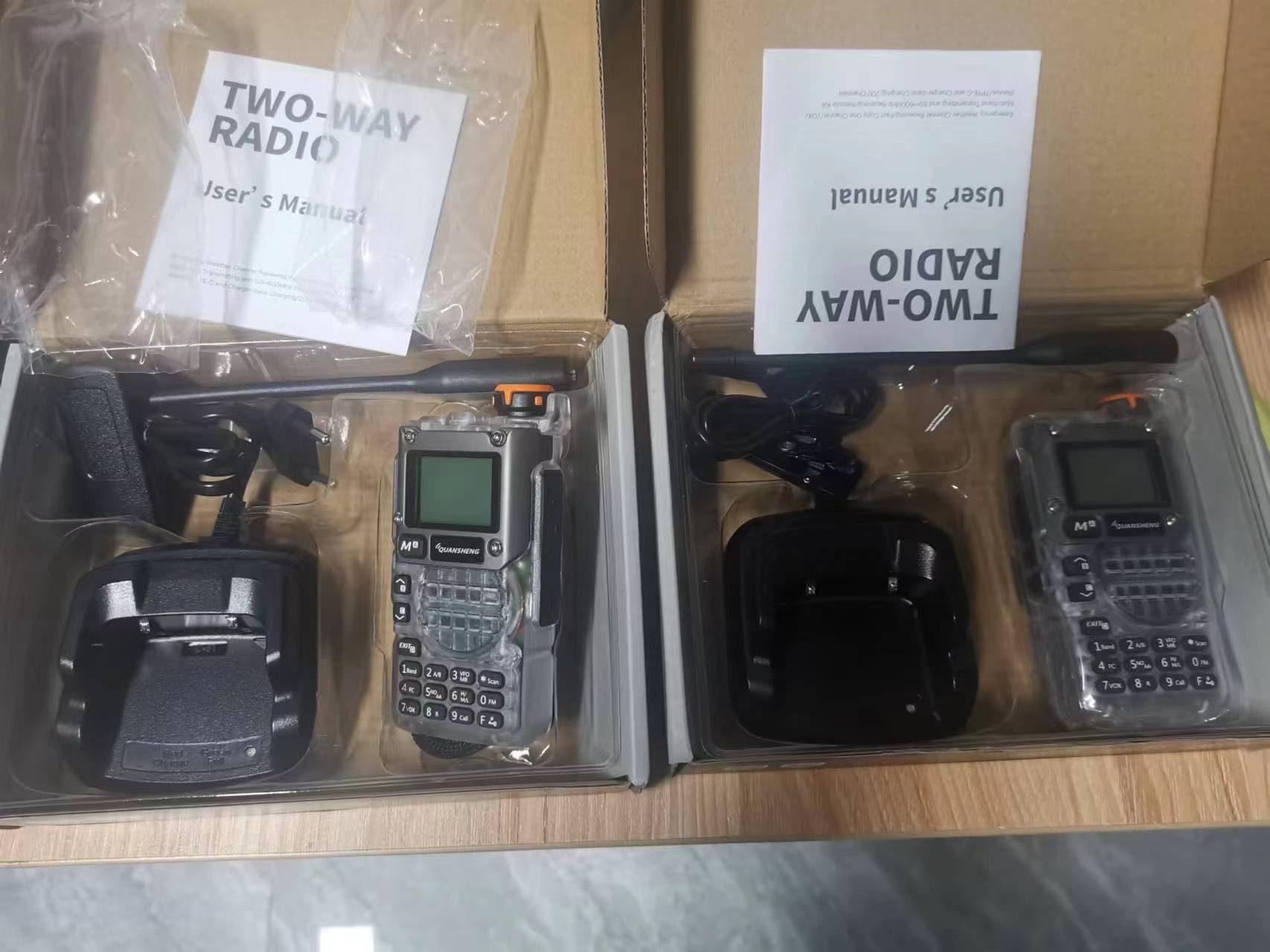

Package:

1× UV-K5(8) Radio Body

1× 7.2V 1600mah Li-ion Battery Pack

1× SMA-Female Dual Band Antenna

1× Belt Clip

1× ENG Manual

1× Desktop Charger ( 110V ~ 240V )

1× Handstrap

Weight 0.9 kg
Dimensions 300 × 400 × 150 cm
