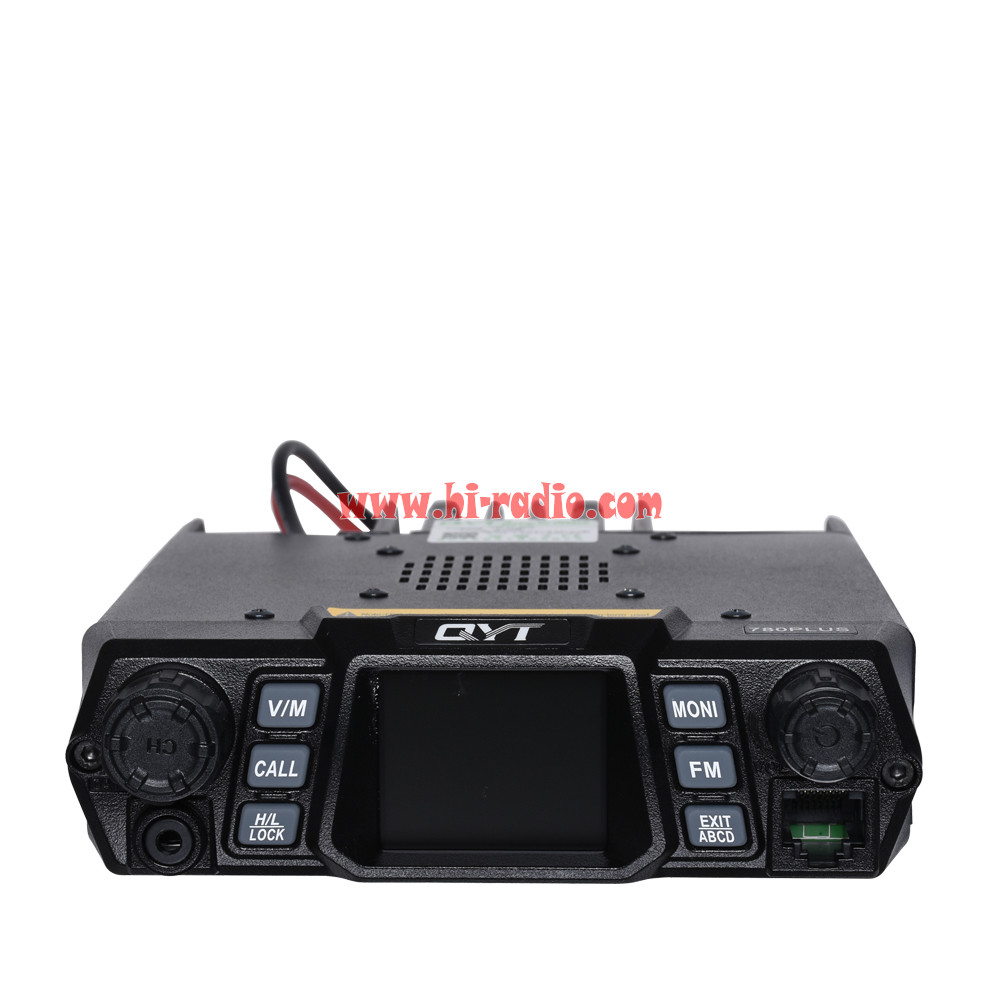

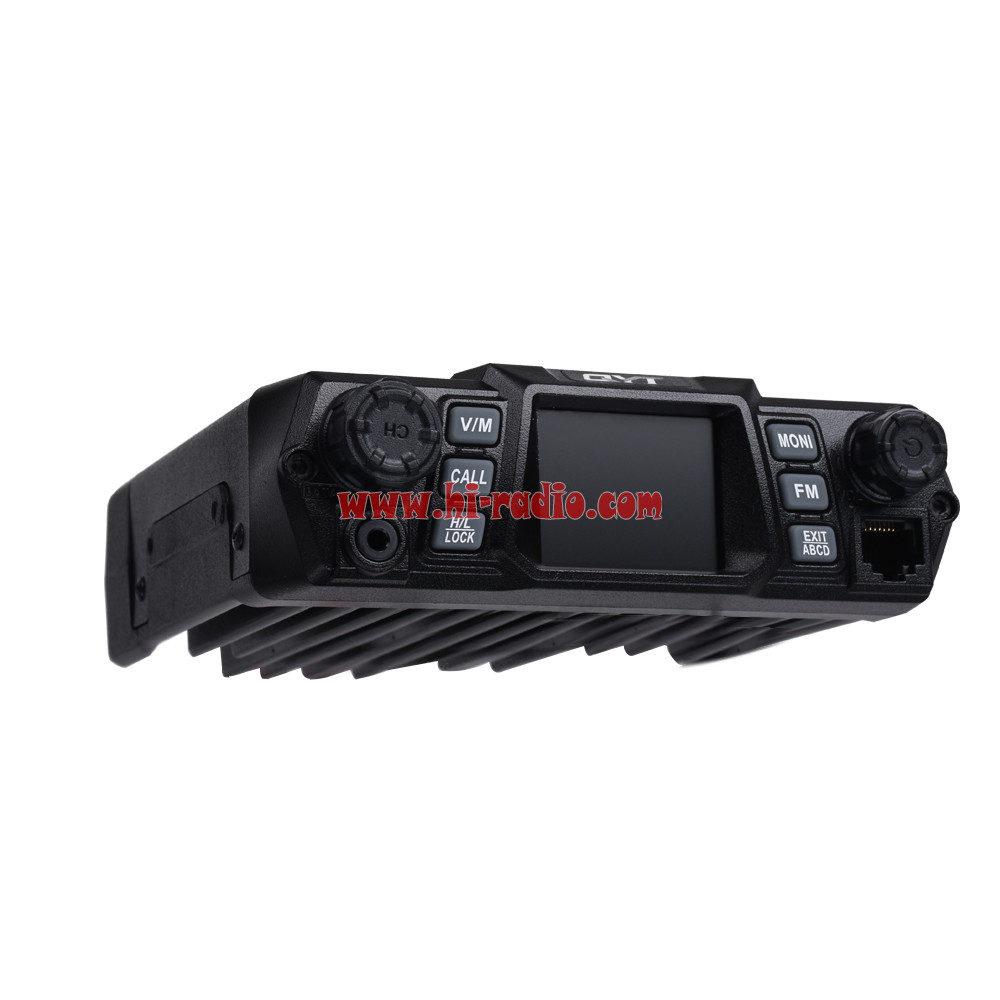

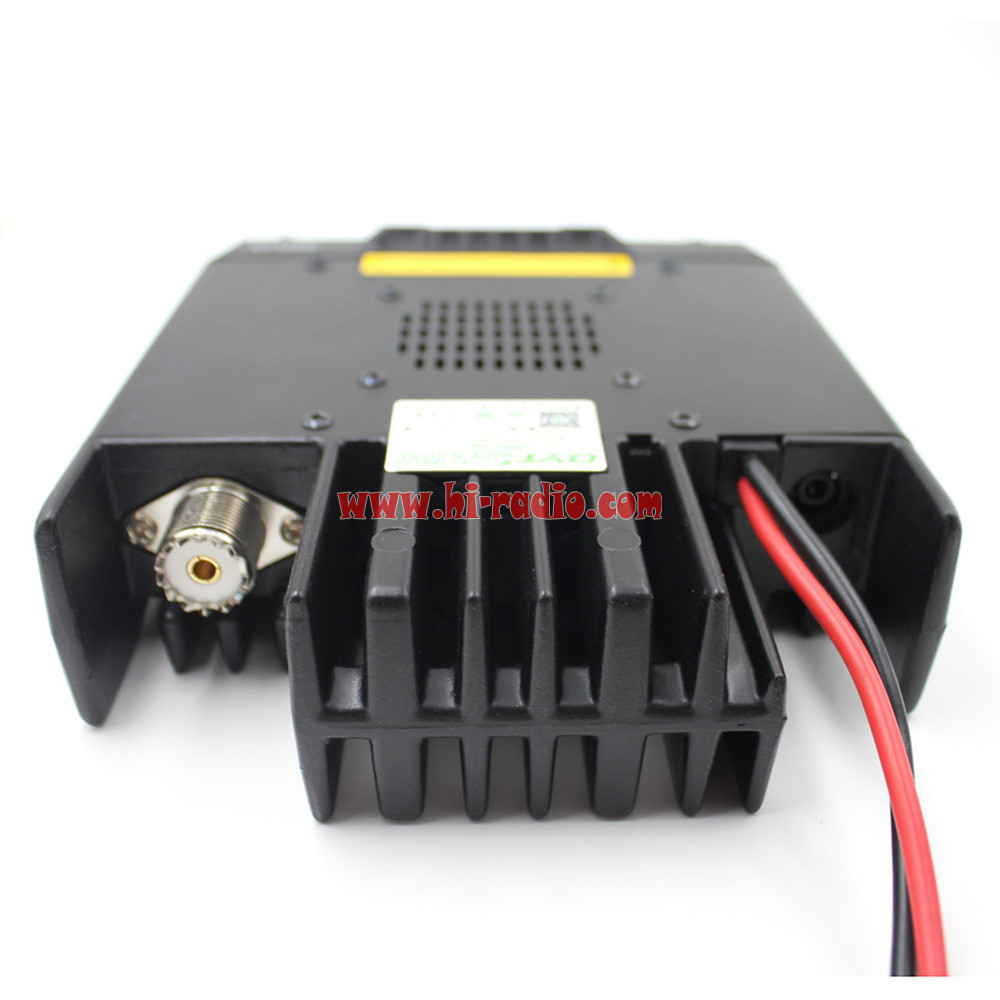

QYT KT-780PLUS 100W High Power Mobile Radio Long Range Car Communication Station

$169.00

SKU: 10180144 Category:

QYT KT-780PLUS 100W High Power Mobile Radio Long Range Car Communication Station



[iframe src=”https://cloud.video.taobao.com/play/u/3168366339/p/1/e/6/t/10301/50105472040.mp4″ width=”80%” height=”500″]



KT-780PLUS  Information

Frequency Range: VHF136-174MHz or UHF 400-470MHz

Channels:200

Power Output(L/H):H 100W(16A) M 50W(9A) L 20W(6A)

Power Supply:13.8V DC±15%

Dimension (H x W x D):140(W)*43(H)*172(D) mm

Weight:1.03kg

Features:

PC Program

ANI (Caller ID)

FM Radio

Single-band/Quad-standby

DTMF function, 2 tone, 5tone

Remote stun, remote activate,remote revive

Long distance communication

100W power output



General Specifications

Frequency VHF:136-174MHz UHF: 400-470MHz
Channels 200
Channel Spacing 25KHz(Wide)  20K(Middle)12.5(Narrow)
Phase-locked step 2.5KHz、5KHz、6.25 KHz、10 KHz、12.5 KHz、25 KHz
Working Voltage 13.8V DC±15%
Squelch carrier wave、CTCSS、DCS、5Tone、2Tone、DTMF
Frequency Stability ±2.5ppm
Working Temperature -20+60℃
Size 140(W)*43(H)*172(D) mm
Weight 1.03kg



ReceiverETSI EN 300 086 Standard



Wide Narrow
Sensibility(12db SINAD) ≤0.25μν ≤0.35μν
adjacent-channel selectivity ≥70db ≥60db
intermodulation ≥65db ≥60db
Spurious Rejection ≥70db ≥70db
audio response +1~~3db(0.3~3KHz) +1~~3db(0.3~2.55KHz)
Signal-to-Noise ≥45db ≥40db
Audio Distortion ≤5%
Audio power ≥2W@10%



TransmitterETSI EN 300 086 standard



Wide Narrow
Output Power VHF H100W(16A)  M 50W(9A)   L  20W(6A)
Mpdulation 16KΦF3E 11KΦF3E
adjacent-channel selectivity ≥70db ≥60db
Signal-to-Noise ≥40db ≥36db
audio response +1~~3db(0.3~3KHz) +1~~3db(0.3~2.55KHz)
Audio Distortion ≤5%



Note: Must use the antenna power minimum 200W (frequency range ±2 MHz)



Package include:

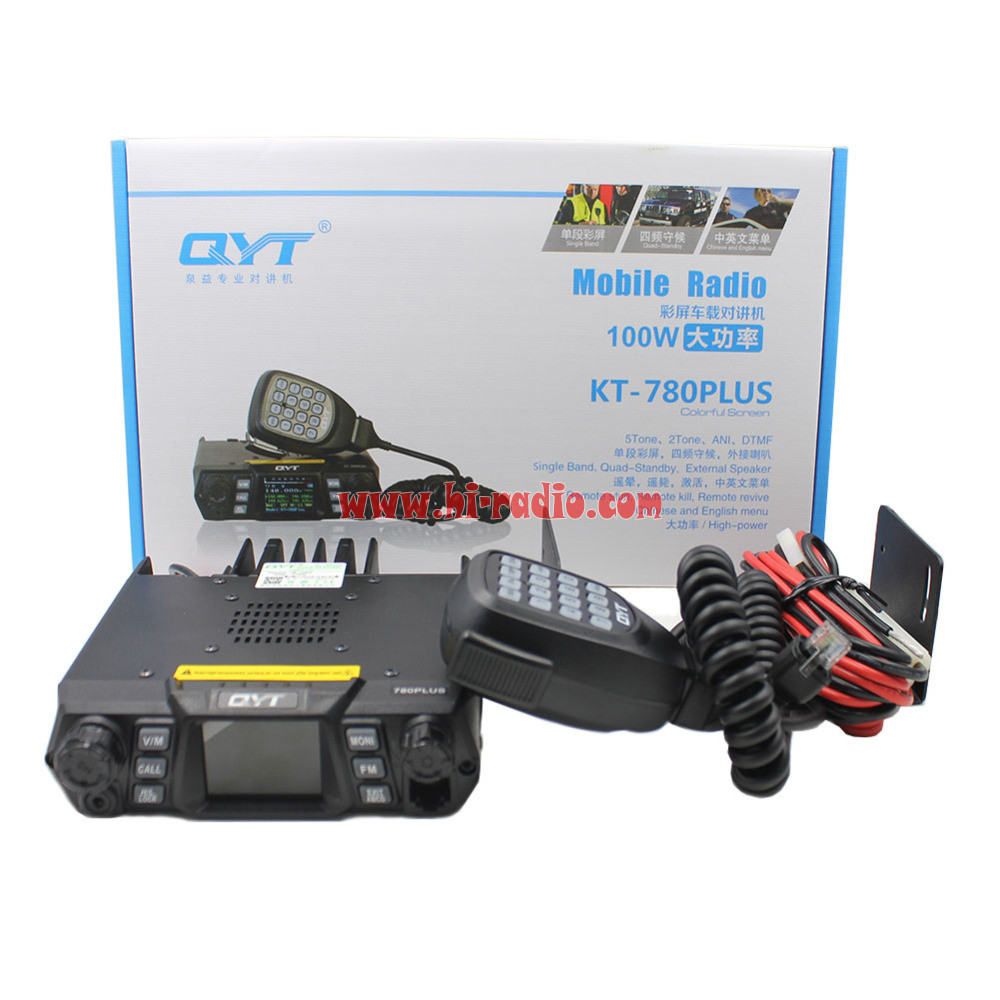

1x KT-780PLUS Car Radio

1x Microphone with DTMF Keypad

1x User Manual

1x Charger

1x Mount Kit

1x Programming Cable

Weight 1.6 kg
Dimensions 450 × 320 × 140 cm
Frequency Range:

VHF136-174MHz, UHF 400-470MHz
