TYT TC 8000 Professional Portable Transceiver

TYT TC-8000 Single band VHF 136-174MHz or UHF 400-520MHz 10watt high power long distance Scrambler Portable walkie talkie 16CH with extra high gain antenna,3600mAh battery pack

Features:

1. VHF:136-174MHz or UHF: 400-520MHz single band
2. 16 channels Analog Two way radio
3. Non-standard CTCSS/DCS Code
4. PC programming protection
5. VOX
6. CTCSS/DCS
7. Chinese and English voice prompt
8. Battery saving function
9. Hi/low power selective
10. Scan
11. Scrambler
12. COMP
13. Wide/Narrow bandwidth selective
14. End-tone elimination
15. Emergency alert
16. Power protection
17. High/low voltage TX prohibition
18. Low battery prompt
19. 1750Hz tone
20. Side-key assignment

Specifications:

General
Model Number	TC-8000
Frequency Range	VHF:136.000-174.000MHz or UHF:400.000-520.000MHz
Channel Number	16
Working Voltage	DC 8V
Working Temperature	-10°C ~+50°C
Antenna	High gain antenna
Antenna Impendence	50 ohm
Working Mode	Simplex
Dimensions	132*59*32mm
Receiver
Frequency Range	VHF:136.000-174.000MHz or UHF:400.000-520.000MHz
Sensitivity	≤0.2µV
Occupied Bandwidth	≤16KHz
Selectivity	≥65dB
Intermediation	≥55dB
Audio Power	1W
Audio distortion	≤5%
Frequency Stability	5ppm
Current	80mA (Standby),220mA( working)
Audio Response	+7~12.5dB
Transmitter
Frequency Range	VHF:136.000-174.000MHz or UHF:400.000-520.000MHz
Output Power	H=9W ±1W, L=5W ±0.5W
Modulation mode	16KF Ø3E
Spurious radiation	≤7.5µW
Modulation noise	<-40dB
Modulation distortion	<5%
Frequency Stability	5ppm
Maximum deviation	≤±5KHz
Current	≤2300mA
Audio response (300-3000Hz)	+6.5~-14dB
Adjacent Ch.Power	≥65dB
Intermediation sensitivity	8~12mV

Note: Specifications will be revised without notice due  to technical improvement. Thank you.

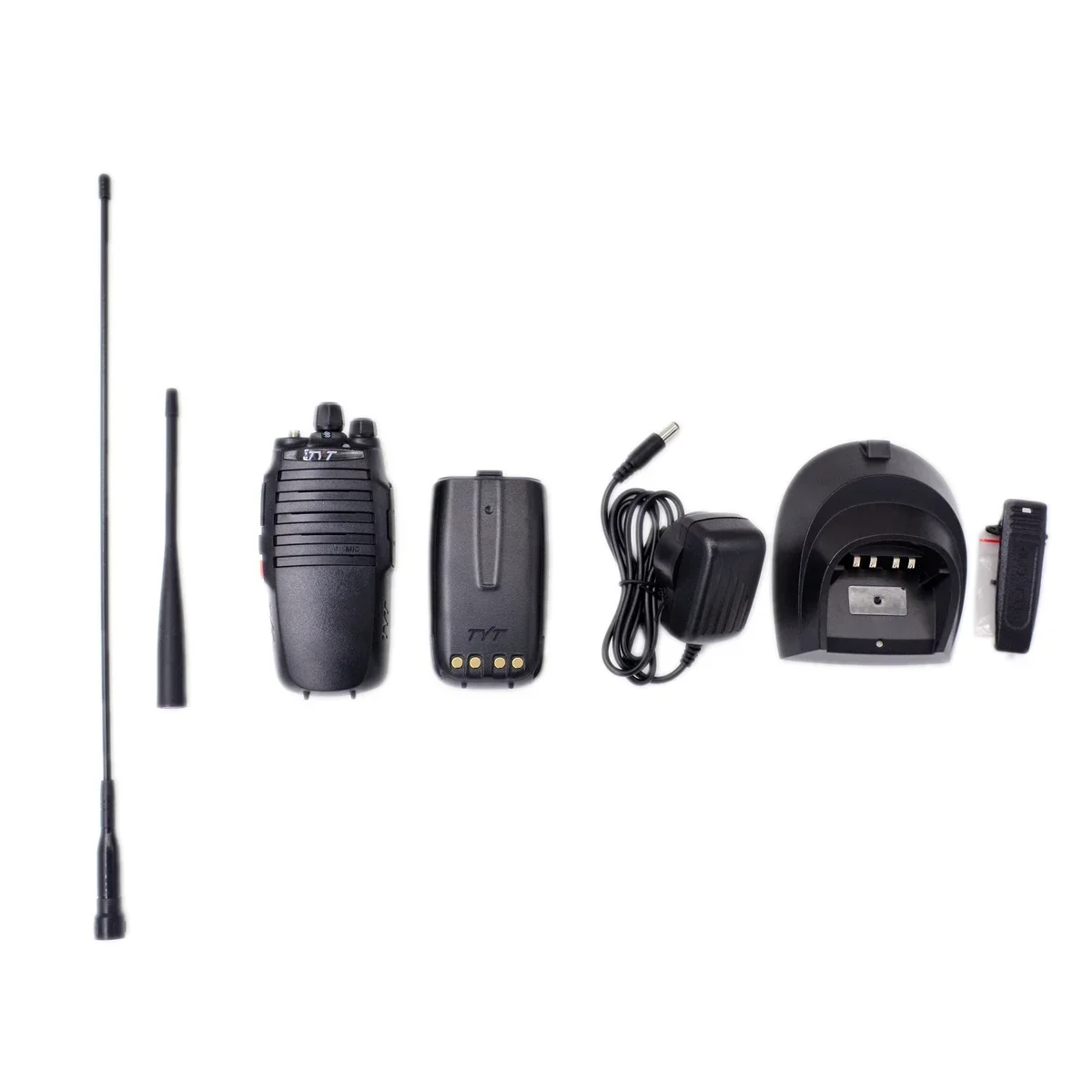

Package Contains:

1× TC-8000 Single band radio body

1× 3600mAh Li-ion Battery Pack

1× Desktop Charger

1× AC Adapter

1× SMA-Male Standard Antenna 15cm

1× High Gain antenna 35.5CM

1× Belt Clip

1× User’s Manual

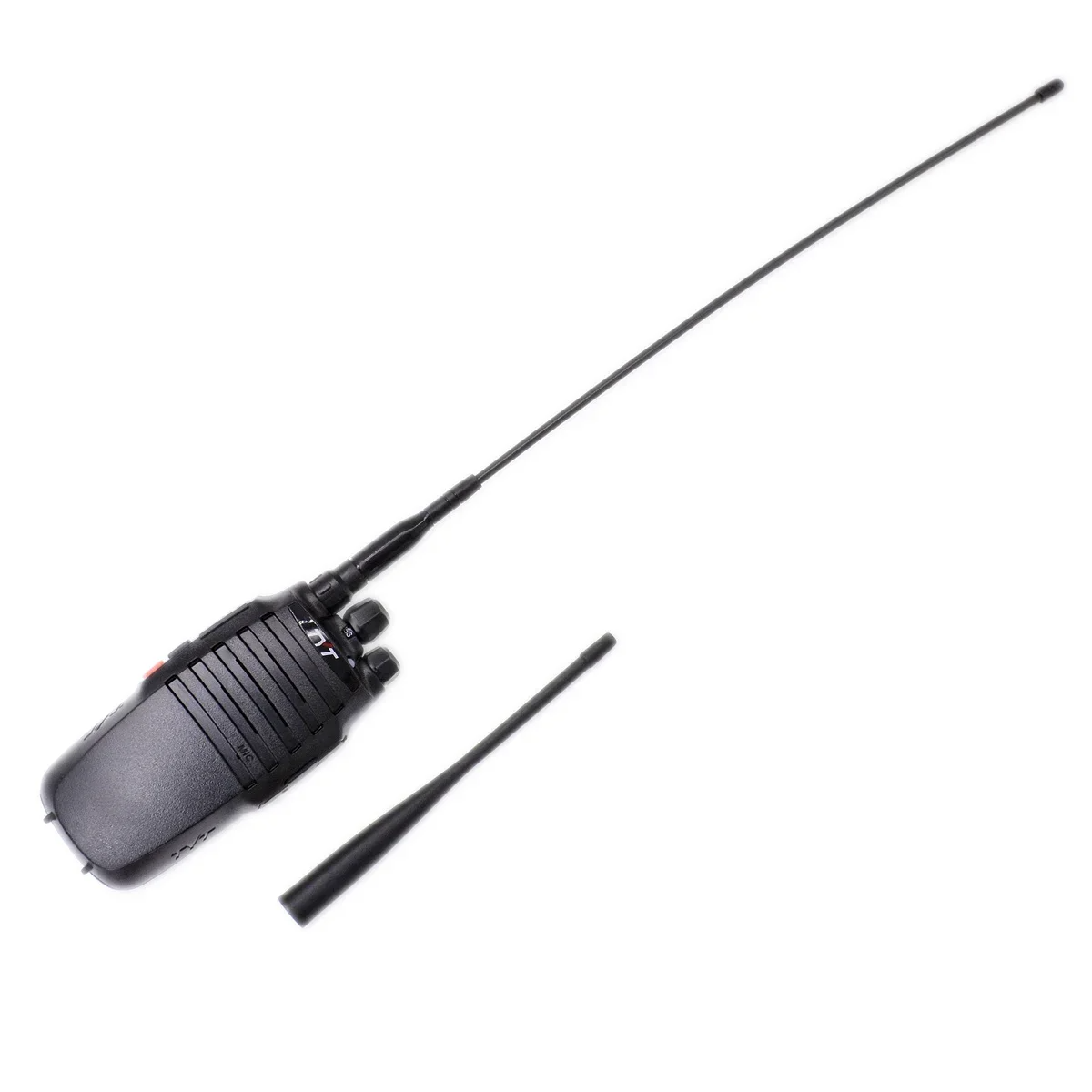

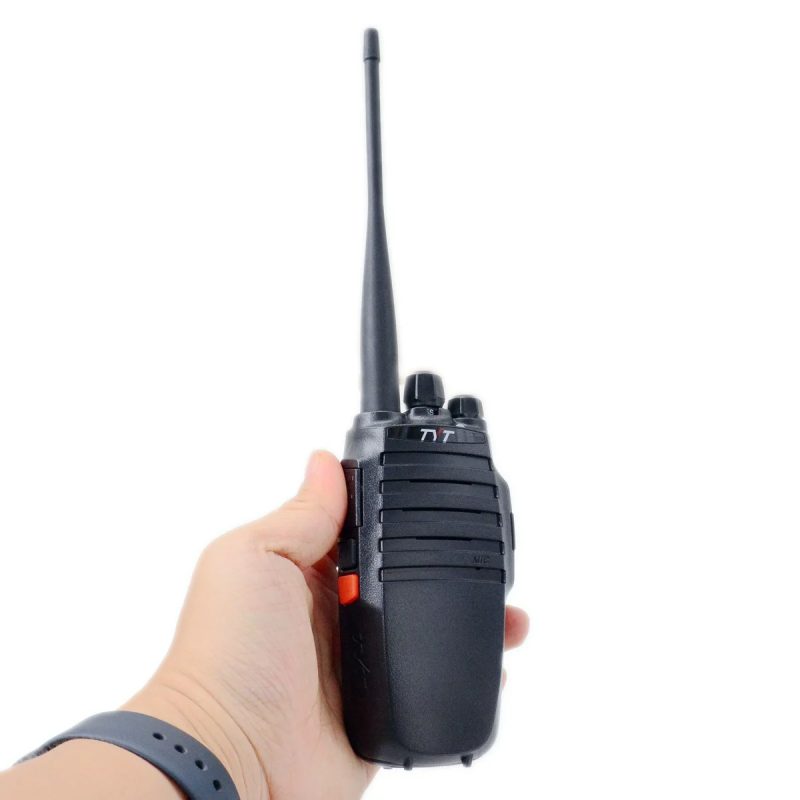

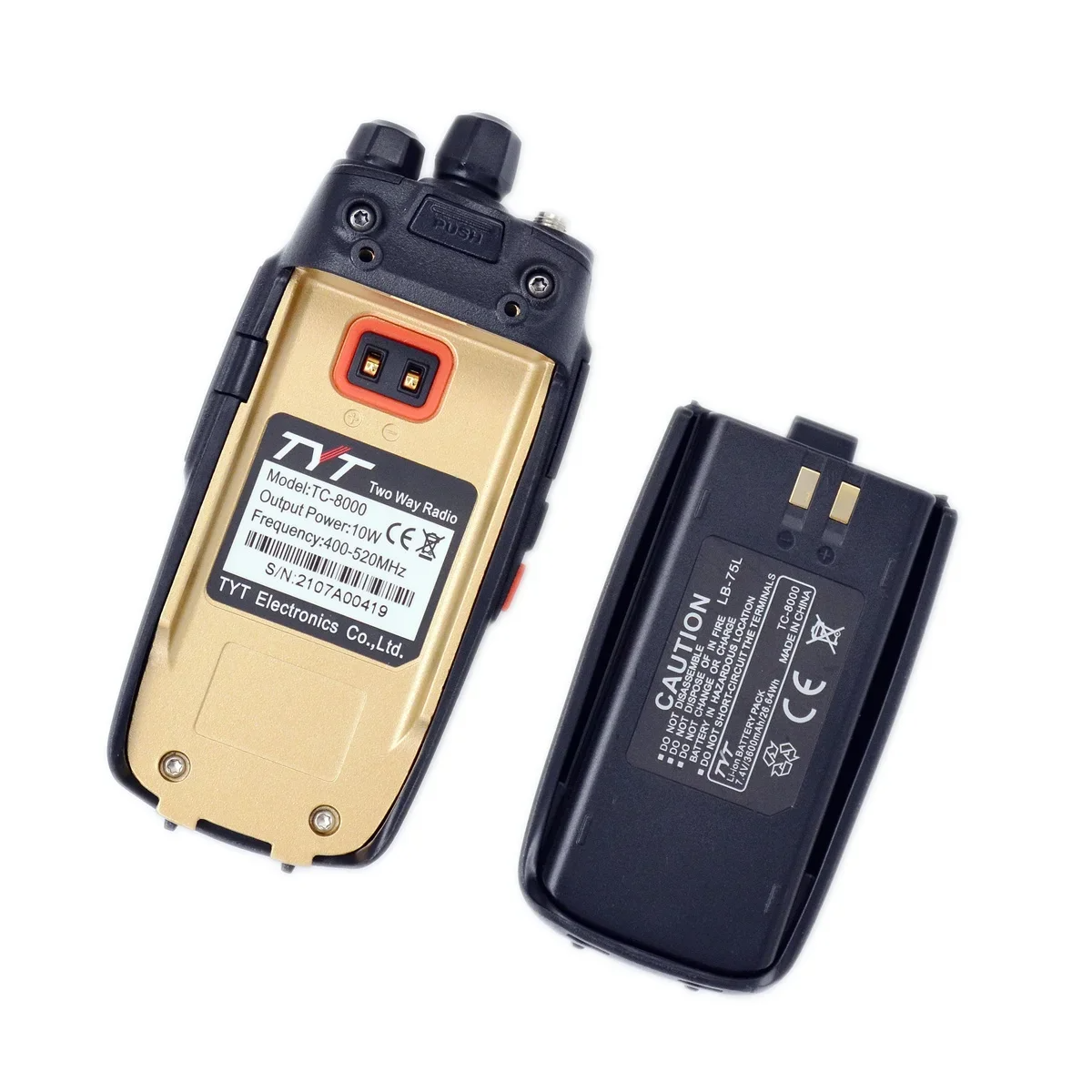

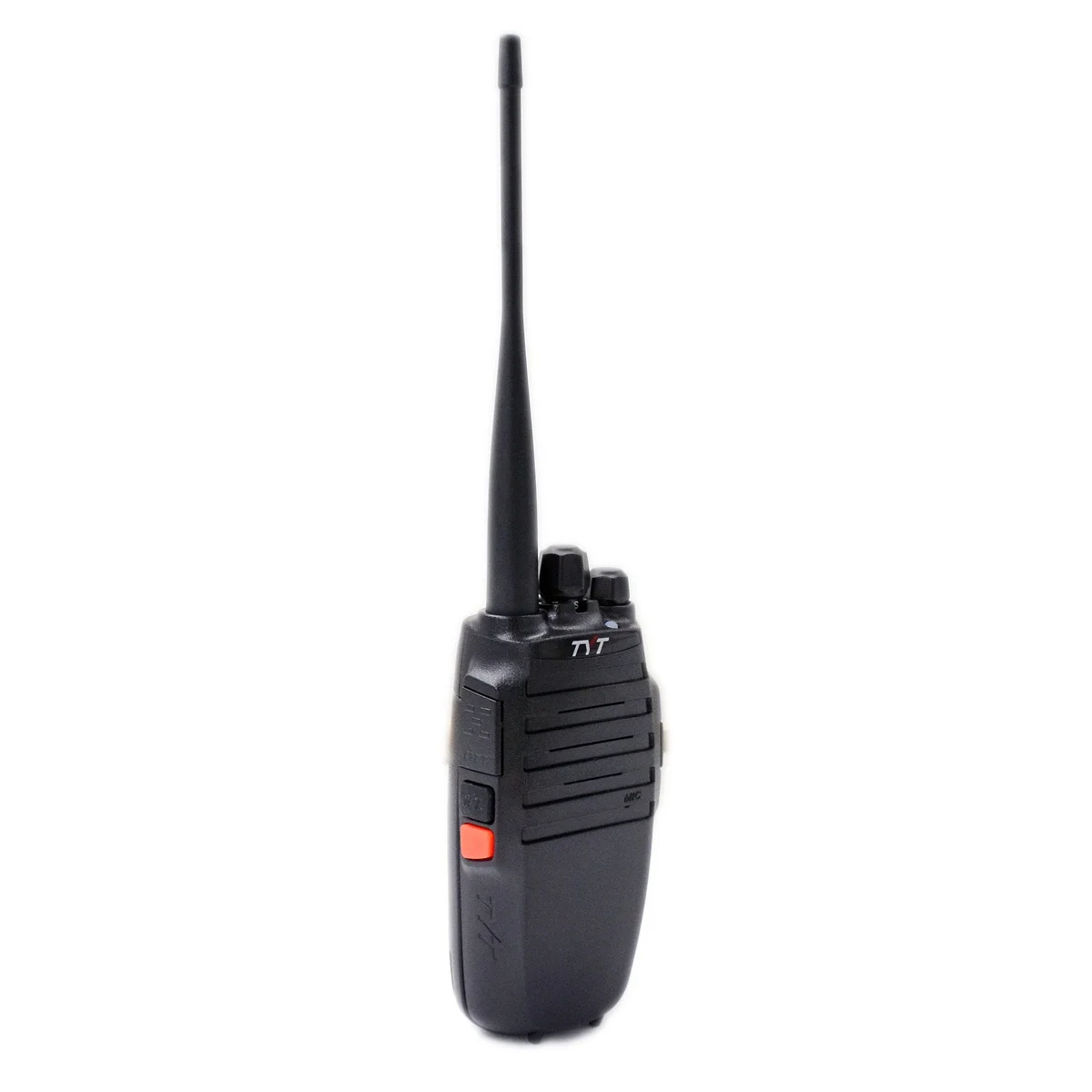

Photos:
