TYT TH-9800 50W Mobile Radio Transceiver VHF UHF Quad Band Car Radio Station CB Walkie Talkie For Truckers


SKU: 10180052 Category:









Cover 29/50/144/430 MHz four transmitting bands
Wide band AM receiving and FM receiving for 26-33MHz, 47-54MHz, 108-180MHz, 320-512MHz, 750-950Mhz(except cell phone)

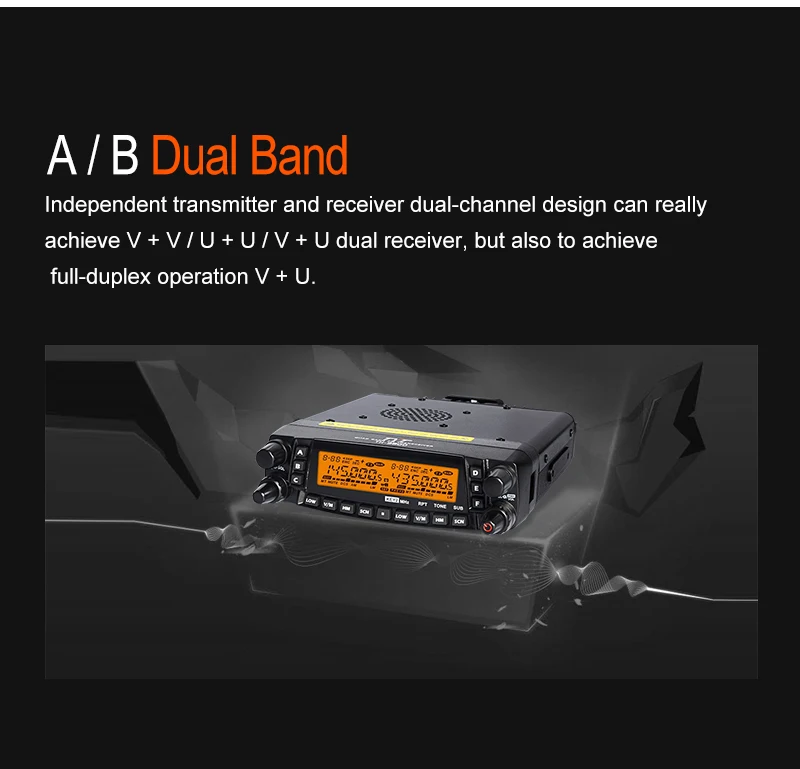

Independent controls for each left and right band
V+V, U+U, V+U simultaneous receive capability
Built-in V+U cross-band repeater and full duplex capability
800 memory channels and independent setting per channel
50W of high power output for VHF band and 40W for UHF band
Standard 50 groups of CTCSS tone & DCS code capability
DTMF/2-Tone/5-Tone for selective calling
Voice compander and encryption scramble
Automatic Repeater Shift(ARS)

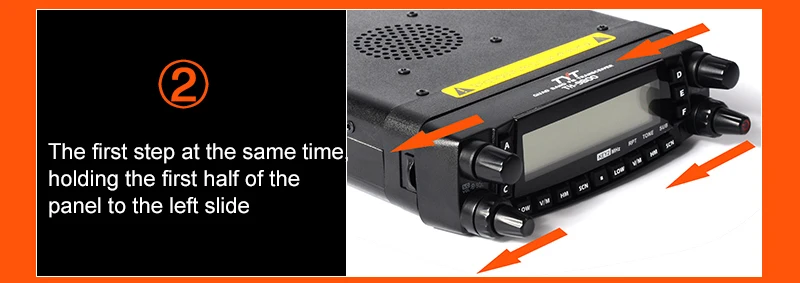

Detachable front controller and remote mounting capability

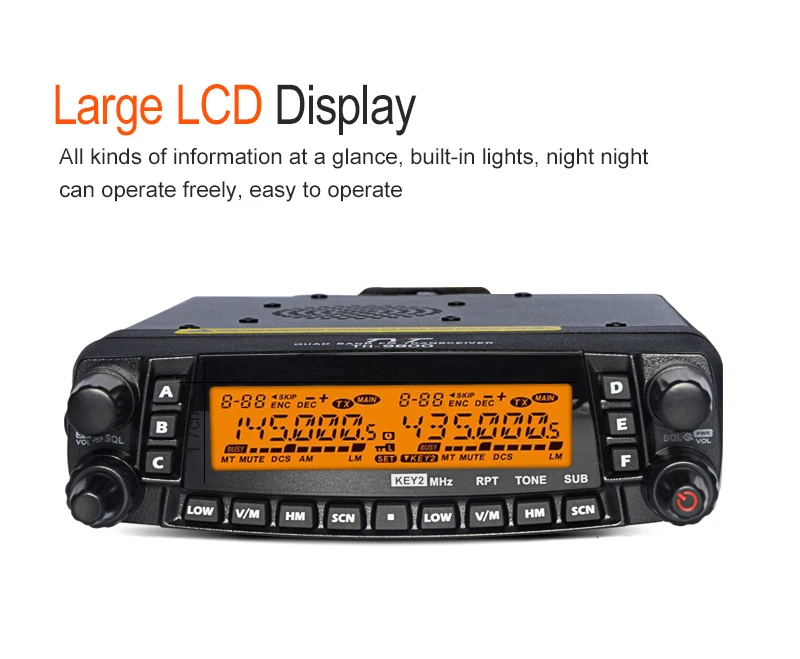

Ultra-size LCD dual display screen
User-programmable microphone keys

Technical Parameters

Frequency Range(Default)



66-88MHz&220-260MHz are optional bands

and could be available for some special requirement.

Left Band

RX:26.000-33.000MHz, 47.000-54.000MHz,

108.000-180.000MHz, 320.000-512.000MHz

TX:26.000-33.000MHz, 47.000-54.000MHz,

134.000-174.000MHz, 400.000-480.000MHz

Right Band

RX:134.000-180.000MHz, 400.000-512.000MHz

TX:134.000-174.000NHz, 400.000-480.000MHz

Channel Steps 2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50/100KHz
Modes of Emission FM
Antenna Impedance 50 Ohms,unbalanced (Antenna Duplexer built-in)
Frequency Stability ±5ppm
Operating Temperature Range -4οF to +140οF
Supply Voltage 13.8V DC(±5%)
Current Consumption RX:0.5A(Squelched) TX:8.5A
Case Size(W×H×D) 140×41.5×168mm
Weight 1.2kg
Output Power 50/20/10/5W (29/50/144MHz)

40/20/10/5W (430MHz)

Maximum deviation ±5KHz
Spurious Radiation <-60dB (29MHz:<-50dB)
Modulation Distortion <3%
Microphone Impedance 2kΩ
Intermediate Frequencies 49.95MHz/450KHz (left band)

38.85MHz/450KHz (right band)

Sensitivity(for 12dB SINAD) <0.2μV
Squelch Sensitivity <0.16μV
Selectivity 12Khz/30KHz
Maximum AF Output

2W@8Ω for 5%THD

Package Units

1× Radio unit

1× Keypad DTMF microphone

1× Radio body mounting bracket

1× DC power cable with fuse holder

1× Front controller mounting bracket

1× Screw packs

1× Protection fuses

1× User manual


Weight 2.5 kg
Dimensions 500 × 400 × 180 cm
