Updated Ver HF VHF UHF Mini1300 Antenna Analyzer

$226.00

SKU: 10180391 Category:

Updated Ver HF VHF UHF Mini1300 Antenna Analyzer

[iframe src=”https://cloud.video.taobao.com/play/u/17298902860/p/1/e/6/t/10301/225533685658.mp4″ width=”80%” height=”500″]

HF/VHF/UHF + 4.3′ TFT Capacitive Touch screen + Rechargeable lithium battery

Upgrade Mini1300 4.3inch TFT LCD 0.1-1300MHz HF VHF UHF ANT SWR Antenna Analyzer inner Battery Meter 5V/1.5A

SPECIFICATIONS:
Frequency Range: 0.1-1300MHz
HF/VHF/UHF contiunous coverage
In/Out Impedance: 50
Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss
Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
SWR MeasureMent Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)
Display Modes: Numerical display, curve display, simith chart
Connector Type: UHF N-type connector
VNA:SMA
SMA OPEN-SHORT-LOAD Calibration Kit x 1
LCD size: 480×272 4.3″ TFT LCD display
Touch Screen Type: Capacitive
All capacitive touchscreen on the display – no buttons are needed
Power Source: USB or Internal  Li-ion
Built-in Li-ion charging circuitry and DC-DC booster
Maximum charging current: 5V/1.5A
External Storage Method: TF card
Dimensions: 133·85·29 mm Does not contain prominent ports.
Weight: 550g
Warning: if the product has parameter changes, the actual test will prevail.

Package included:

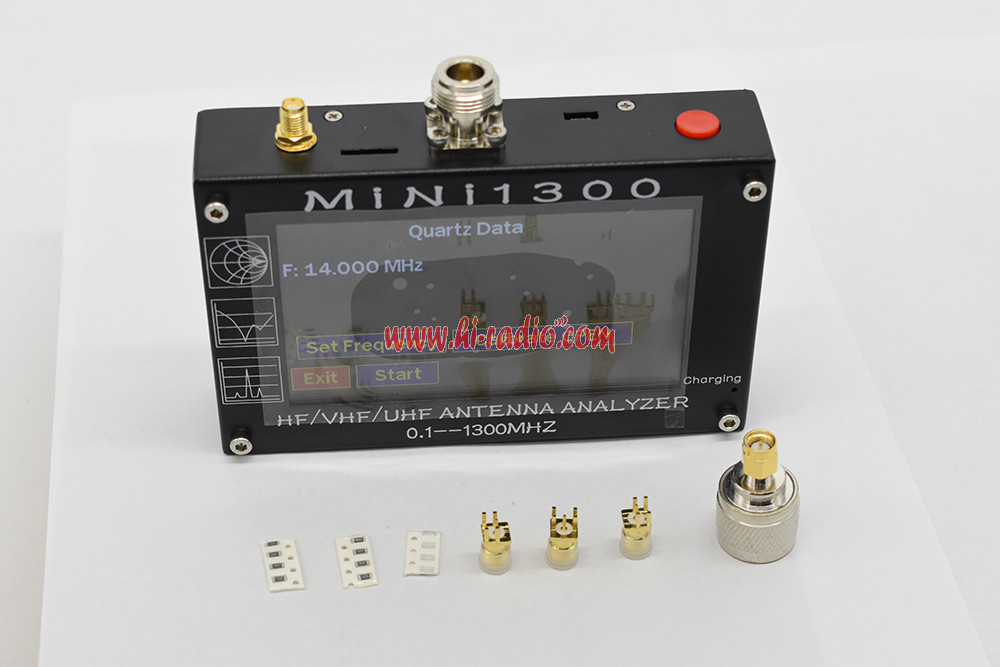

1pc HF VHF UHF Mini1300 Antenna Analyzer 0.1-1300MHz

Weight 1 kg
Dimensions 400 × 300 × 100 cm
