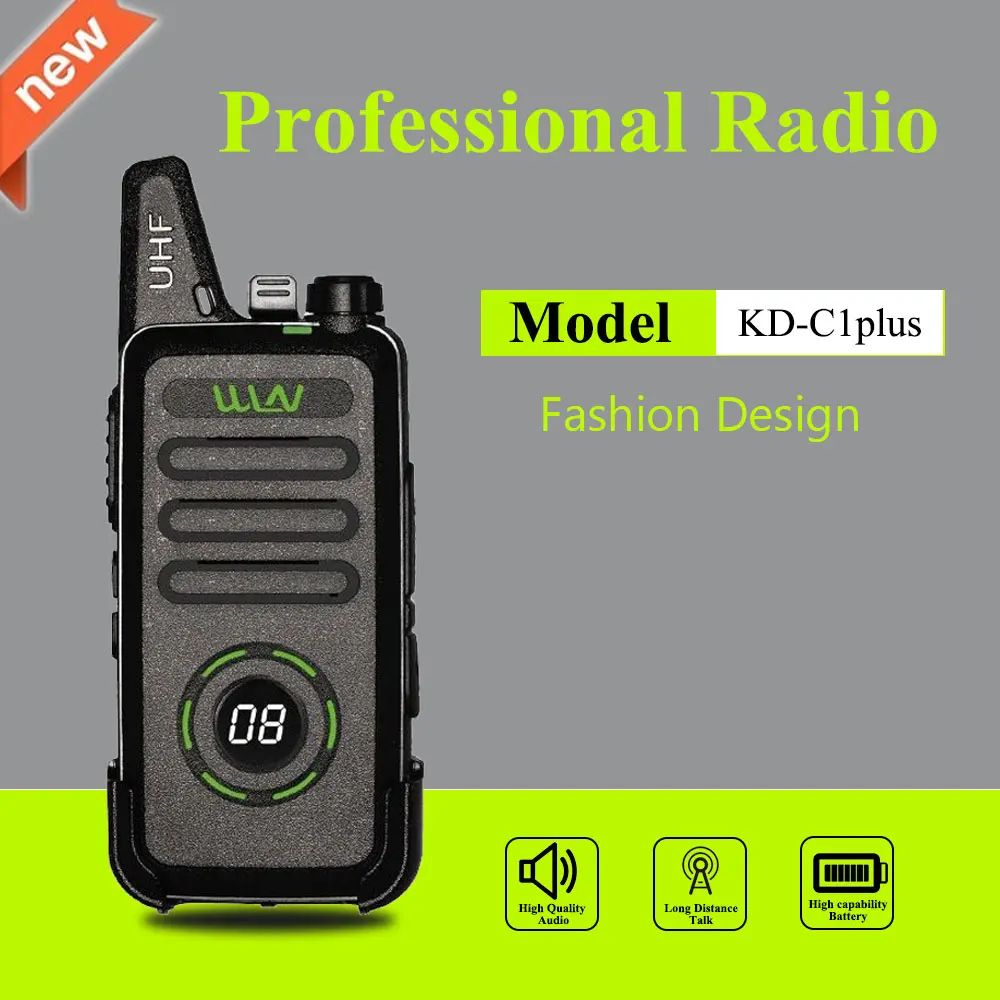

2PCS New WLN KD-C1plus mini Walkie Talkie KD-C1 plus UHF 400-470MHz slim transceiver two way radio KD-C1 Upgraded
Note: if you need software, please contact us.

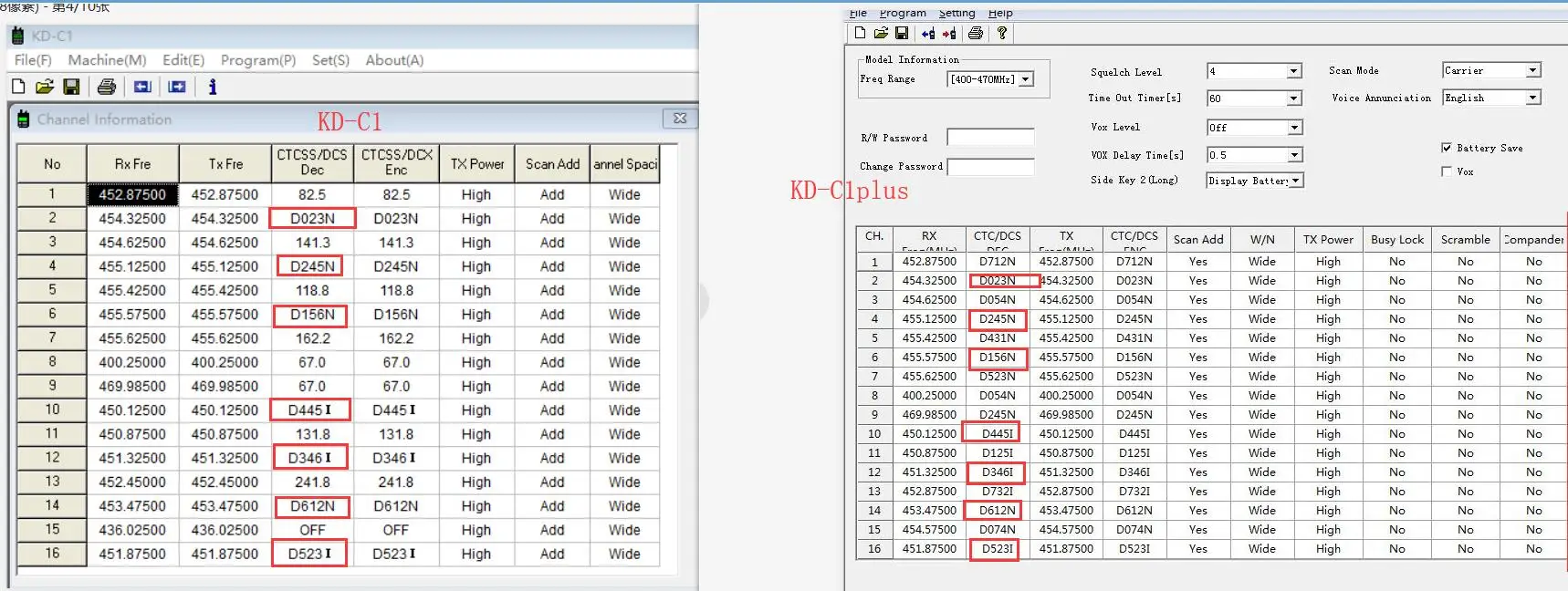

Comparison of WLN KD-C1 and KD-C1PLUS
Feature:
50 CTCSS/105 CDCSS
VOX Function
Voice Prompt
PC Programming
Emergency Alarm
Intelligent Charging
Battery Save
Low Voltage Alert
Time-out Timer
Specification:
General Specifications
Frequency Range :UHF 400-470MHz
Channel Capacity :16
Channel Spacing :25KHz
Operated Voltage :3.7 V
Battery :1500MAh Li-ion
Battery Life(5-5-90 duty cycle) : About 8 hours
Frequency Stability :±2.5ppm
Operated Temperature : -30°c-+60°c
Antenna Impedance : 50Ω
Dimensions (L×W×H) (with battery,without antenna) :110×50×32 mm
Weight (with battery/antenna) :125g
Communication Range : about 6km
Transmitter
RF Power Output : <5W
Modulation : F3E
Spurious Emission : ≤65dB
FM Noise : ≤-45dB(W) ≤-40dB (N)
Audio Distortion : ≤5%
Transmitting Current : ≤1.3A
Receiver
Sensitivity (12dB SINAD) : ≤0.20 uV
Selectivity : 55dB/50dB
Intermodulation : ≥65dB
Adjacent Channel Selectivity: ≥60dB
Spurious Response : ≥60dB
FM Noise : 45dB/40dB
Audio Power Output : 1000mW
Audio Distortion : ≤5%
Standby Current : ≈15mA (with battery save on)
Package including:
2* KD-C1plus Radio body
2* Li-ion Battery in Radio
2* USB charger cable
2* Red Belt Clip
2* Users Manual in EN
2* USB charger ( US-2pin/ EU-2pin /UK-3pin / AU-2pin optional , pls leave us a message, thanks.)
