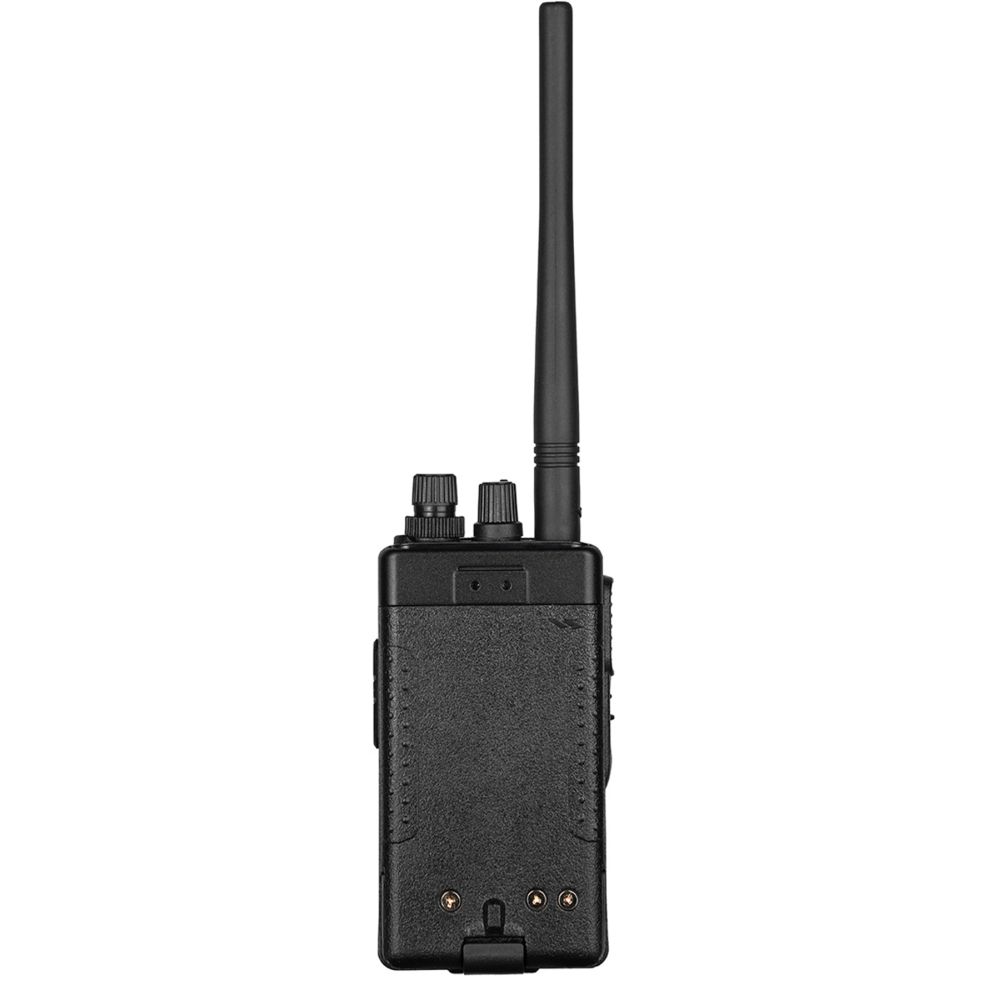

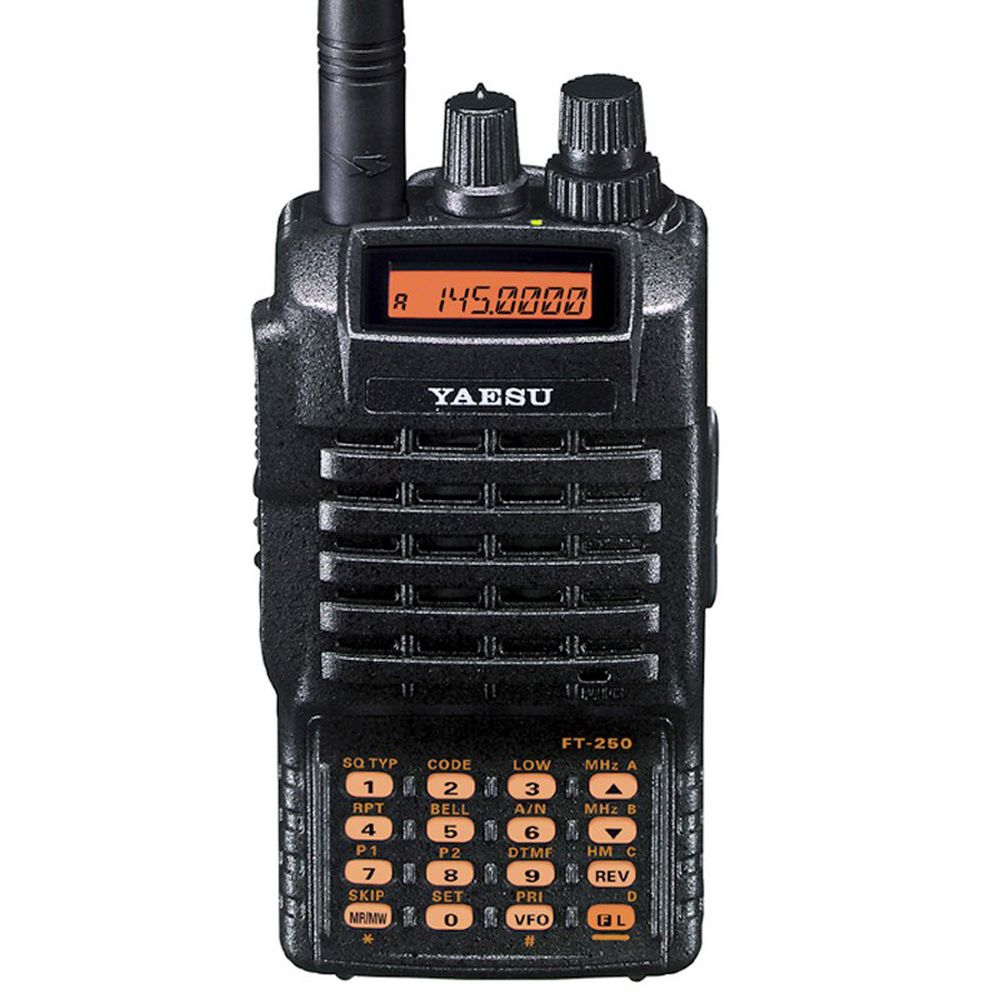

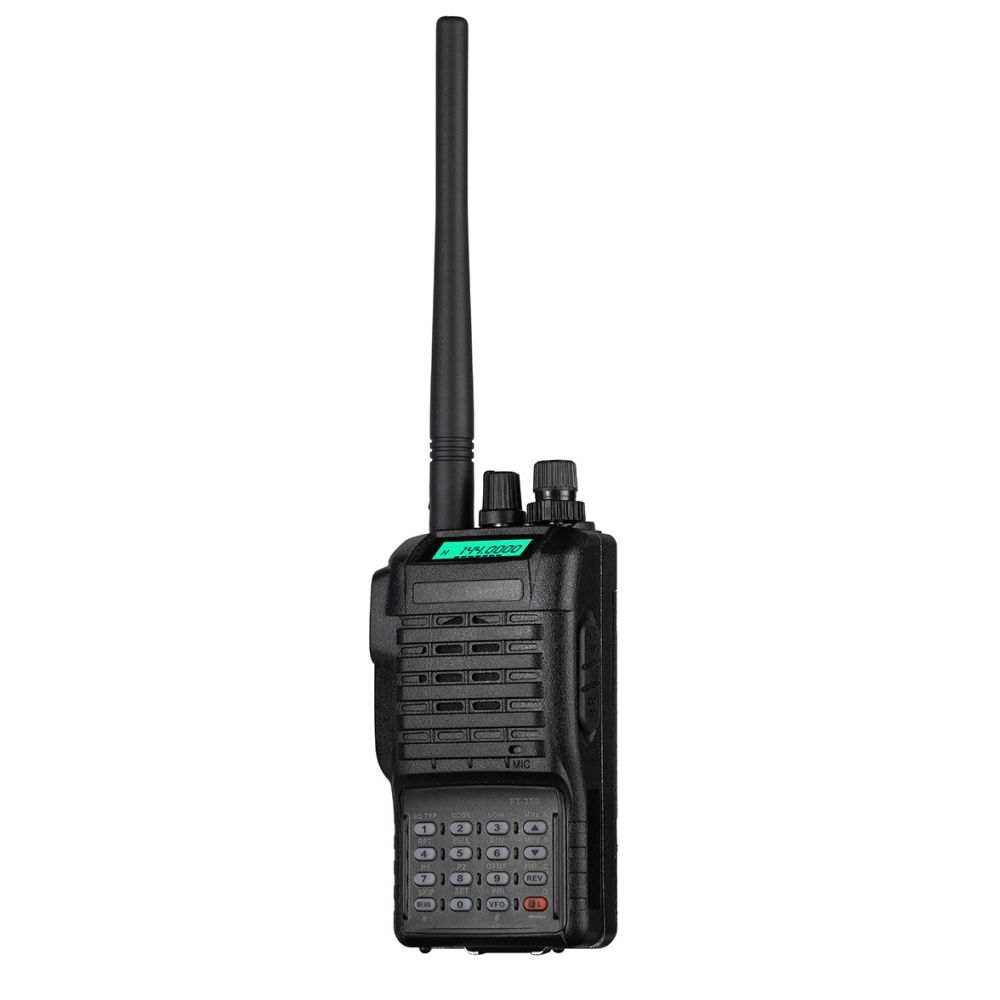

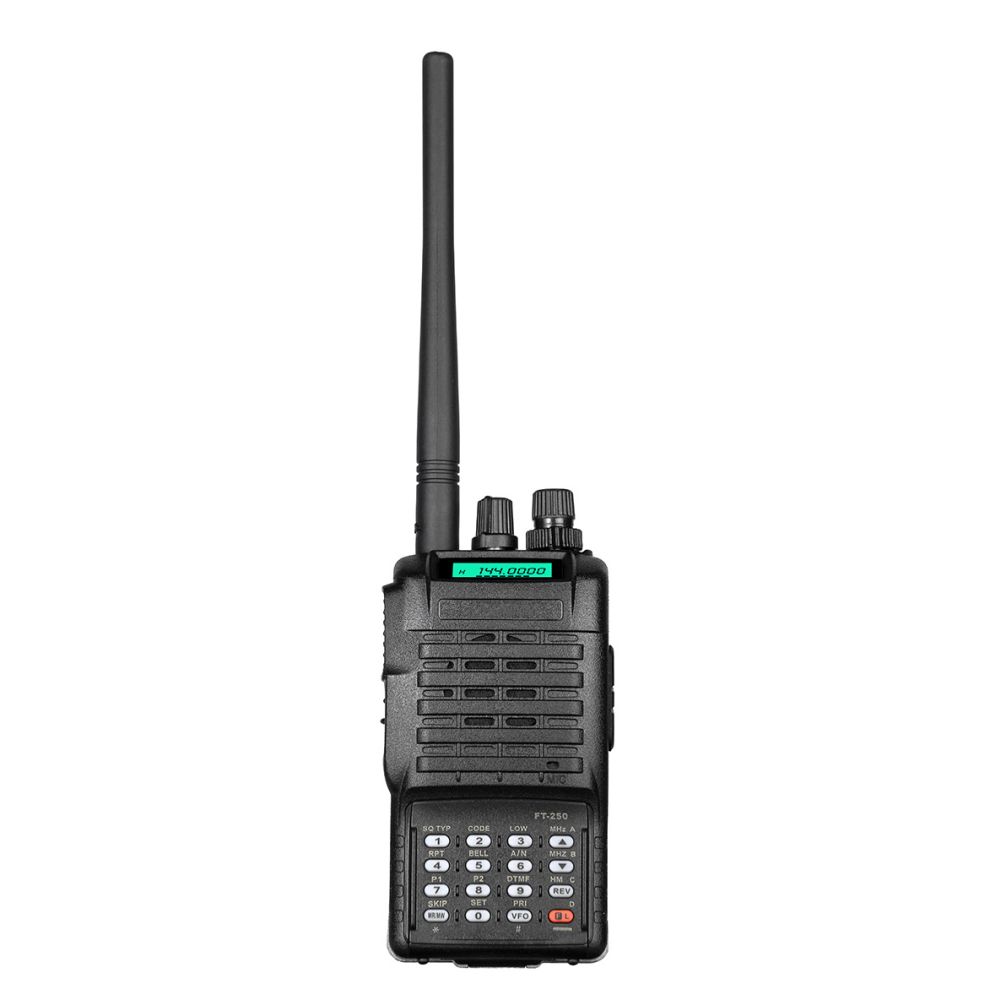

Yaesu FT-250R Portable Marine Transceivers VHF UHF Amateur Two Way Radio Handheld Walkie Talkie

$89.79

& Free Shipping
Quantity Discount (%) Price
1 $89.79
2 - 4 2.24 % $87.78
5 - 9 4.79 % $85.49
10+ 7.38 % $83.16

Yaesu FT-250R Portable Marine Transceivers VHF UHF Amateur Two Way Radio Handheld Walkie Talkie

Features:
209 Memories
5 Watts RF Output
Backlit Keypad
700mW Audio Output
Smart Search Operation
PL Encode/Decode
DCS Encode/Decode
Memory Only Mode

The FT-250R 2 Meter handheld transceiver features a compact design with a top mounted LCD display. This model transmits from 144 to 148 MHz with up to 5 watts. Receive range is 136-174 MHz. Direct frequency entry is supported. You get both CTCSS and DCS encode/decode. The keypad is backlit. The supply voltage is 6 to 16 VDC.

The FT-250R has 209 memories and 16 keys. Manufactured to Mil-Spec 810D/E. The FT-250R is similar to the VX-150, but adds a Memory Only mode, and has more audio output.

SPECIFICATIONS

GENERAL
Type: Amateur VHF transceiver
Frequency range: Europe
TX: 144-146 MHz
RX: 140-174 MHz
USA
TX: 144-148 MHz
RX: 140-174 MHz
Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz
Frequency stability: ±5 ppm @ -10 to +60°C (14 to 140°F)
Mode: FM
Channels / memory management: 199 regular with alpha tags (7 characters)
5 band edge (PMS) pairs
1 home
Priority function
Non-volatile EEPROM storage
Repeater shift / offset: ±0 to 99.9 MHz
Power supply: 7.2 VDC (NiMH battery pack)
or 6-16 VDC external
Current drain / power consumption: RX: 8-130 mA
TX: 0.5 to 1.3 A
Antenna impedance / connector: 50 ohm / SMA
Dimensions (W*H*D): 58*108*26 mm (2.28*4.25*1.02′)
Weight: 352 g (12.42 oz), with FNB-83, belt clip and antenna
Other features: CTCSS/PL and DCS with tone search. 1750 Hz repeater tone.
ARS. ARTS. DTMF. Backlit display. Dual watch. Cloning.
RECEIVER SECTION
Receiver system: Double conversion super heterodyne
1st IF: 21.7 MHz
2nd IF: 450 KHz
Sensitivity: 0.16 uV (12 dB SINAD)
Selectivity:
Image rejection: 65 dB (Adjacent channel)
AF output power / speaker: 700 mW at 10% distortion / 16 ohm
External speaker connector:
TRANSMITTER SECTION
RF output power:
High Mid Low
2 m: 5 W 2 W 500 mW
Modulation system: Variable reactance
Max FM deviation (Factory set): ±5 KHz
Spurious emissions: Better than -60 dB
Microphone impedance / connector: 2 Kohm / ?-pin
Microphone input level: ? mV

Weight 0.8 kg
Dimensions 40 × 30 × 10 cm
