YANTON DM-830 DMR Digital GPS 1024H 5W 200 km Portable Radio Transceiver

$89.00

SKU: 10180500 Category:

YANTON DM-830 Manufactures 2 time slots DMR profession radio long range 5W output

[iframe src=”http://vod-icbu.alicdn.com/k3u9yPfELLVCD6NcKld/3Kj8KcAR38uNApgVC2f%40%40hd.mp4″ width=”100%” height=”500″]

YANTON DM-830 Featues:

1. 64 zone 1024contacts
2.Encryption function
3.Digital analog combined
4.Single call, group call and all call
5.Remore kill/ stun and activate
6.Man Down

7.SMS message
8.Firmware upgradeable
9.DTMF Function
10.High/low power selection
11.Protocol ETSI TS 102,361-1,-2,-3
12.GPS function

DMR Specification:

GENERAL
Frequency Range
400-480MHz
Operating Temperature
-20℃ to +55℃
Channel spacing
 12.5KHZ
Frequency Stability
±2.5ppm
Memory Channel
 100
Working voltage
7.4v
Antenna Impedance
50Ω
Audio output power
≤1000mW@16Ω
Dimensions
98*58*35mm
Weight
 194g
TRANSMIT PART
RF power
 High: ≤5W(HI) Low: ≤1W(Low)
Frequency stability
+/-1.0ppm
Adjacent channel Power
≤-60dB
Free time slot power
 TDMA: ≤-57dBm
FM modulation mode
 12.5KHZ:11K 0 F 3 E
RECEIVER PART
Analog sensibility
0.35uV/-116dBm(20dB SINAD) / 0.22 uV/-120dB m(Type)
Digital sensibility
0.3 uV/-117.4dBm(BER 5%) / 0.7 uV/-110dBm(BER 1%)
Co-channel Rejection
 ≥-12dB
Spurious response
 TIA603C: 75dB ETSI: 70dB
Adjacent channel selectivity
 TIA603C: 65dB ETSI: 60dB
Rated audio power
 1w

Package Include as below:

1× YANTON DM-830 UHF Radio

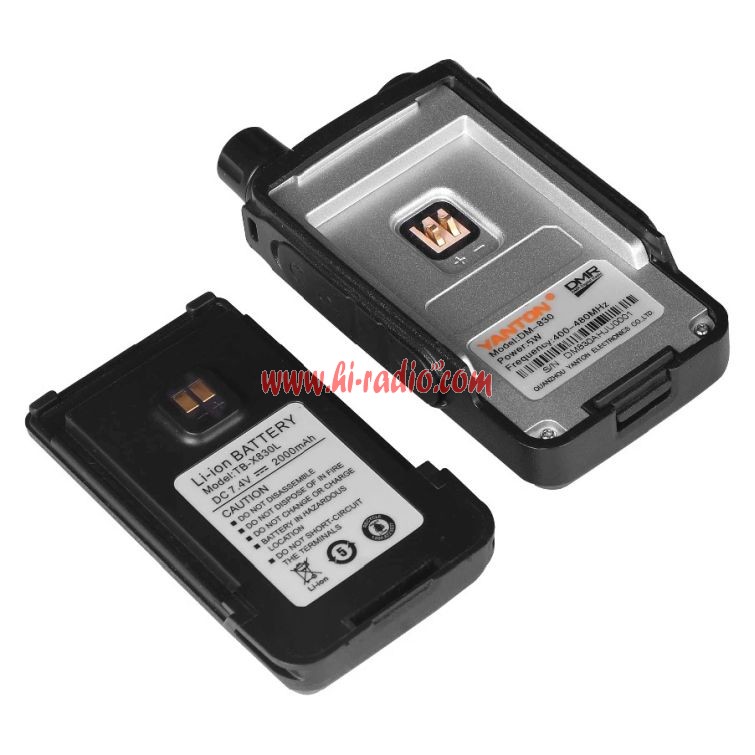

1× 2000mAh Li-ion Battery Pack

1× Desktop Charger w/Adapter

1× Antenna

1× Belt Clip

1× Hand Strap

1× User’s Manual
Weight 0.6 kg
Dimensions 400 × 300 × 100 cm
