Mini Mobile Radio 25W 136-174MHz 220-250MHz Dual Band Car Radio

Mini Mobile Radio HG-808 25W 136-174MHz 220-250MHz Dual Band Car Radio

Hot sot:

1.    The function of the new development menu Personalized design operation

2.    Dual Display, Dual Standby & Dual Track

3.    Mini Size, Power Supply: DC 12V/13.8V(Cigar-plug Cable)

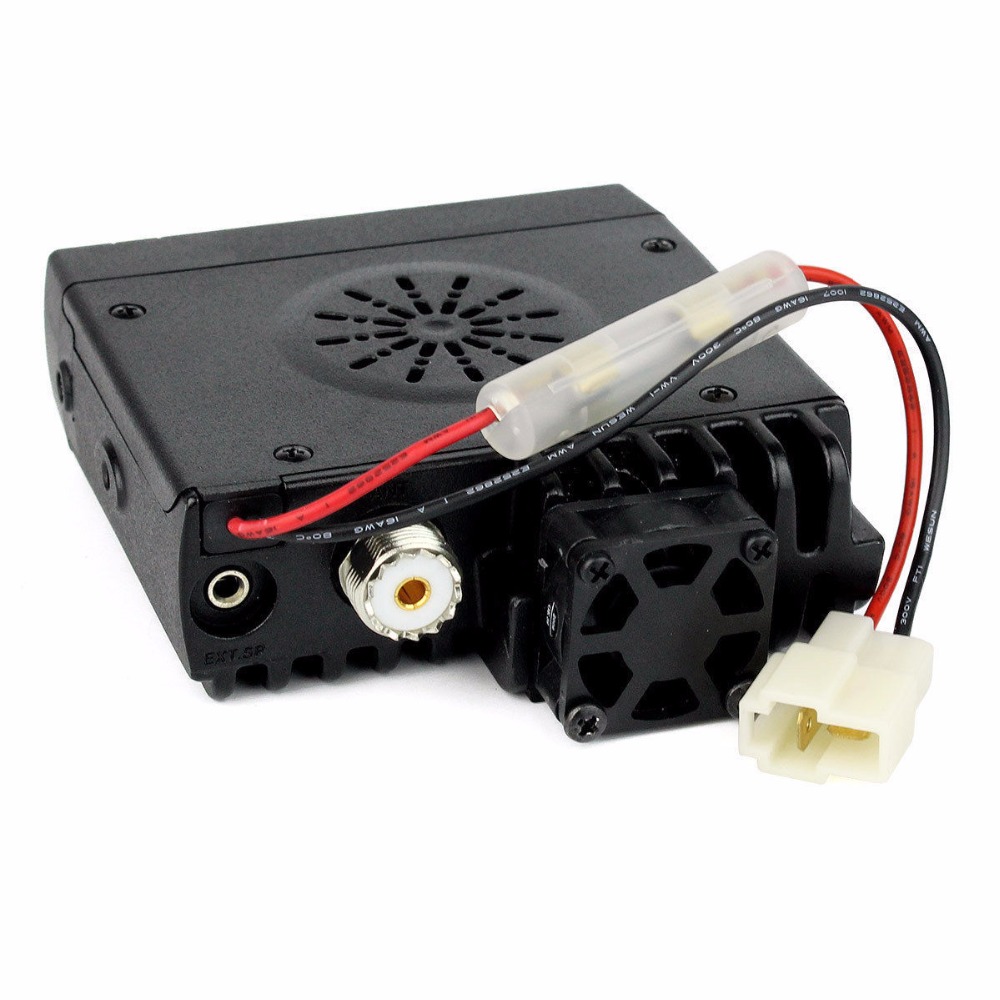

4.    Cooling function: add a small fan

5.    Frequency Range Manual Programmable

6.    Software Password Programmable

7.    Voice companding and scrambler encryption

8.    Remote Stun, Remote Kill & Remote Revive

Feature:

1.    Dual display, dual standby & Dual Track

2.    Frequency adjusting

3.    Working mode selecting

4.    Scrambling encryption function

5.    Voice companding function

6.    Frequency/Channel scan function

7.    Reverse frequency setting

8.    Busy channel lock-out (BCL)

9.    Time-out timer (TOT)

10. High/low power selectable

11. CTCSS/DCS encoding and decoding

12. Broadband (Wide)/Narrow band (Narrow) selectable

13. Frequency Step Selectable 2.5/5/6.25/10/12.5/25/50KHz

14. Level Threshold “Squelch” adjustable from 0 to 9

15. Tri-color background light selectable

16. PC software programmable

17. FM radio function

18. Operation for manual channel memory and delete

19. Automatic lock-out

20. DTMF signal setting

21. DTMF signal

22. PTT ID Setting

23. Remote control function

24. Remote monitoring

25. Remote stun

26. Remote kill/shaking

27. Remote reliving

28. Alarm function

29. Group calling function

30. Team calling function

31. Selected calling function

32. Function key guide voice (BEEP)

33. SFT/Slip frequency direction

34. OFFSET/Slip frequency

35. 1000Hz/1450Hz/1750Hz/2100Hz selecting

Specification:

All of our item are brand News Model HG-808 Color Black Frequency Range VHF: 136-174MHz & UHF 220-250MHz System F3E(FM) Channel capacity 256 Input voltage DC13.8V(±15%), negative grounding Output power H:25W, M:10W, L:5W Channel Spacing 12.5KHz/25KHz Frequency Spacing 2.5/5/6.25/10/12.5/15/25/50KHz Squelch way CTCSS/DCS/DTMF Antenna impedance 50 ohm Frequency stability ±2.5ppm @ -10°C~+60°C Working temperature -20°C~+60°C(-4°F~+140°F) Max. Frequency deviation ±5KHz Noise radiation <=-60dB Flexibility <=0.2Uv(12dB SINAD) Max. Audio output 2W @ 8 ohm 5% distortion Working current Receive 0.3A(SQL) Transmit 5A(Max.) Dimension 105mm * 35mm * 115mm Weight About 0.5kg

Programming Software & User’s Manual Download

Package Include:

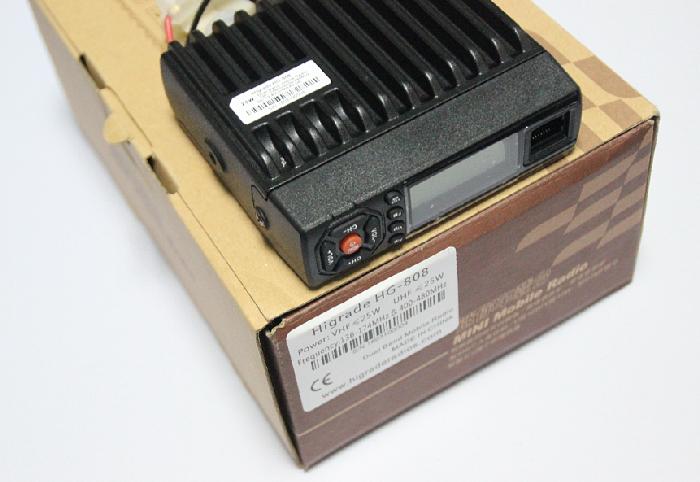

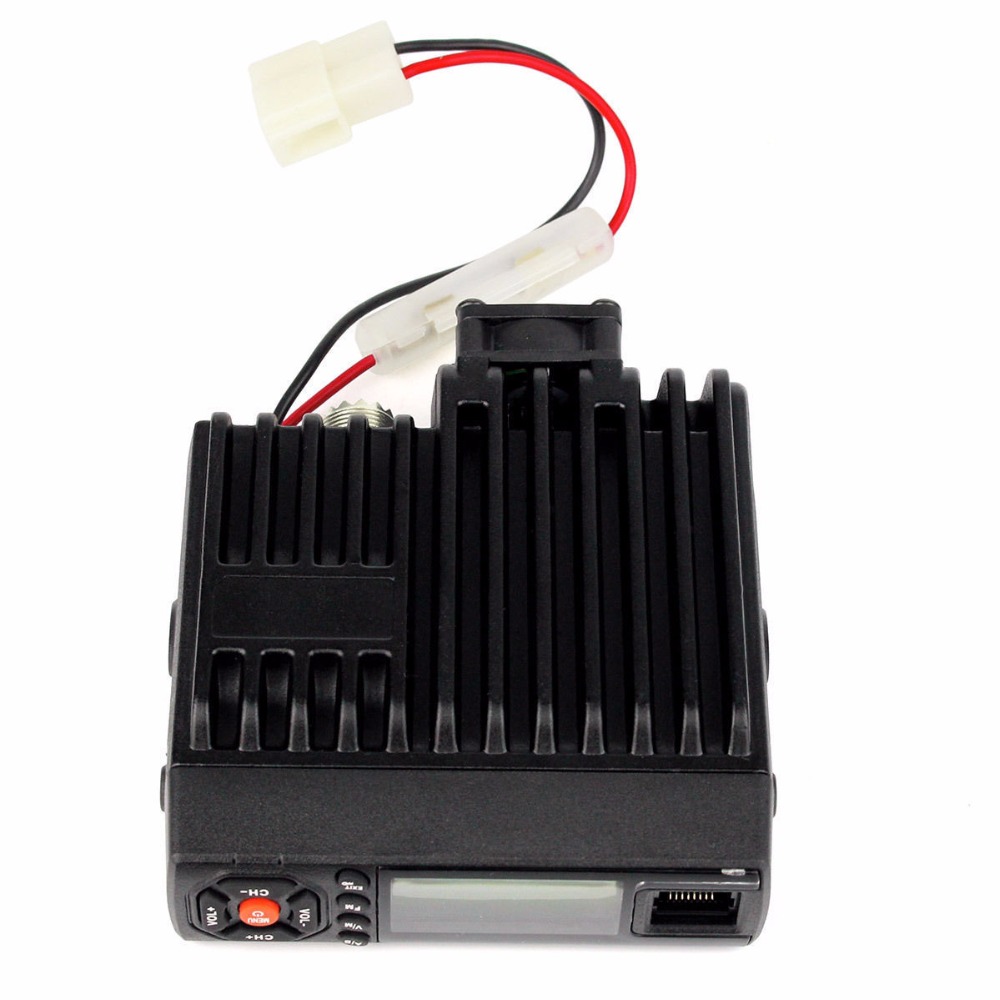

·    1 x HG-808 Mini 25W Mobile Radio Transceiver

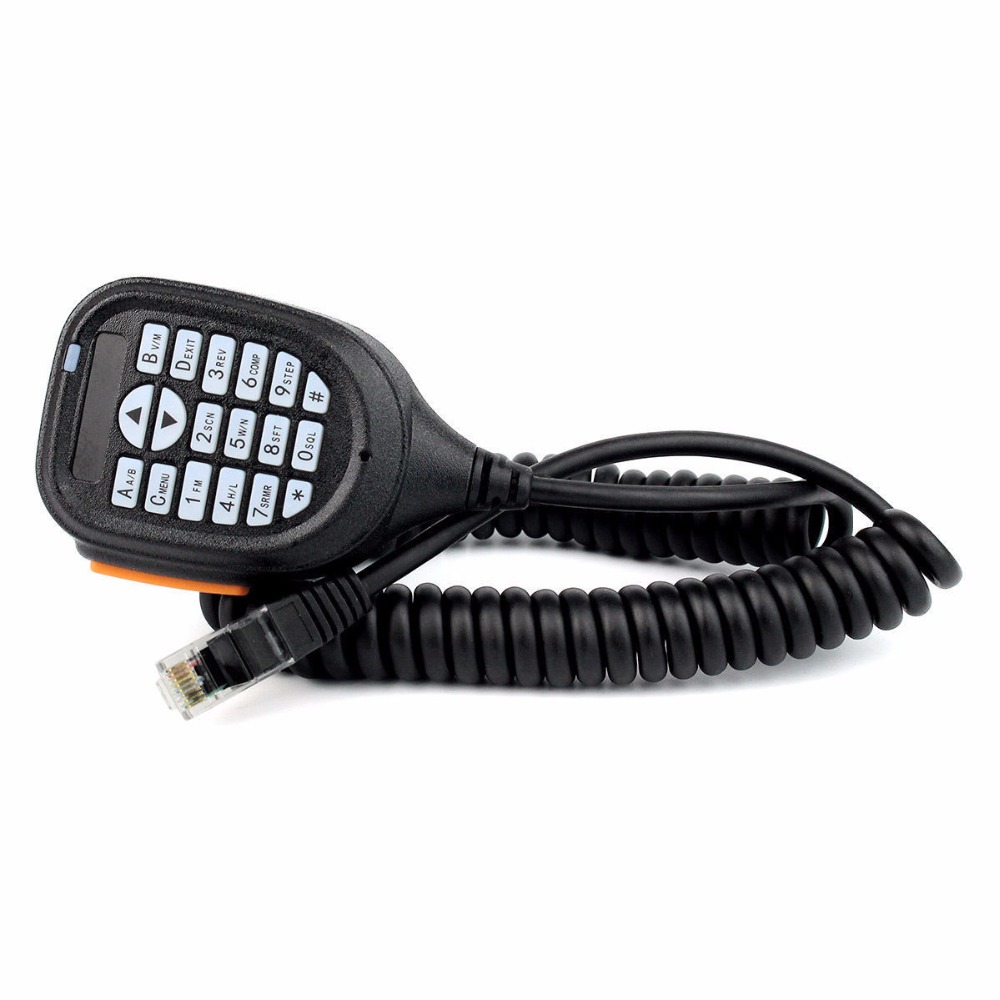

·    1 x Microphone

·    1 x Car Power Cable

·    1 x Power Cable

·    1 x Mounting bracket

·    1 x Screw

·    1 x User’s manual
